Product Introduction:

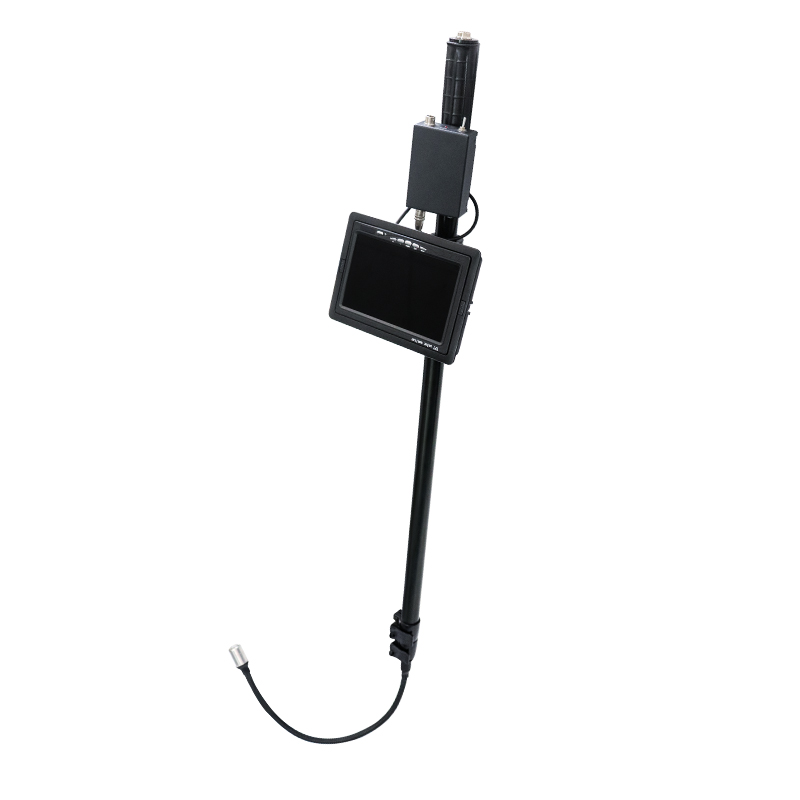

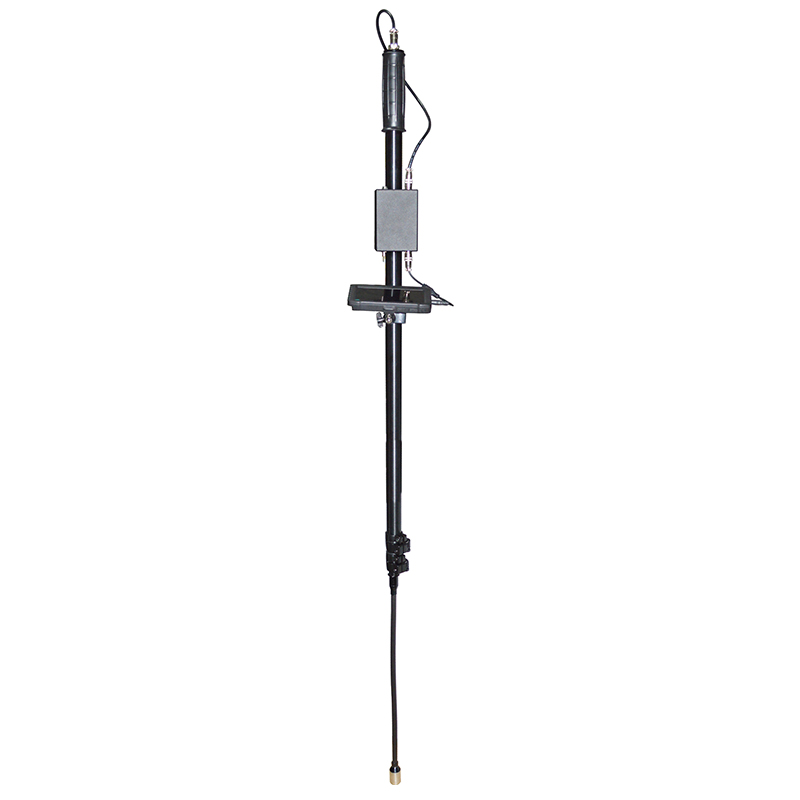

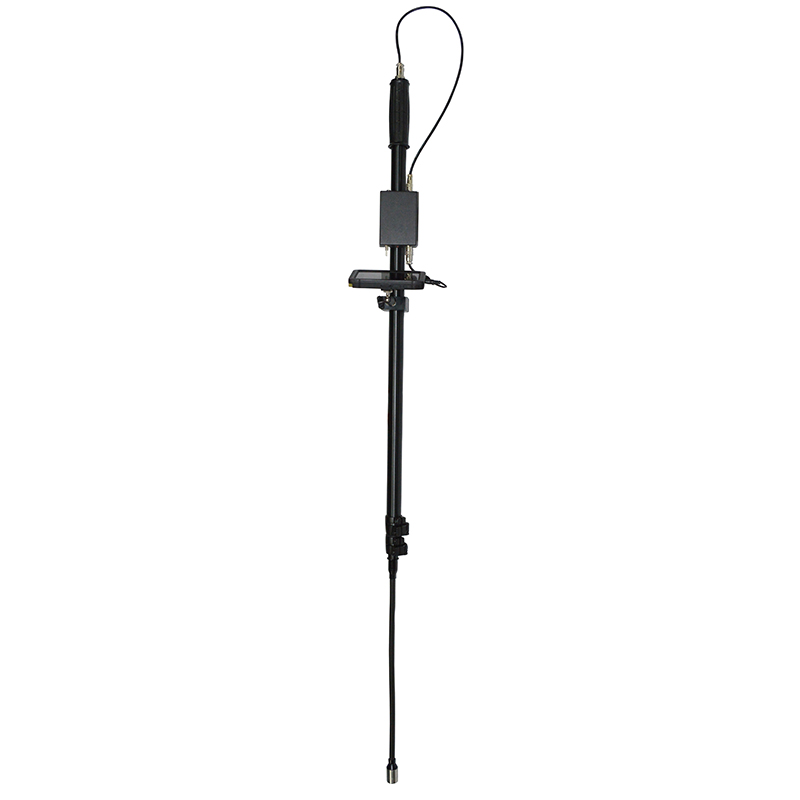

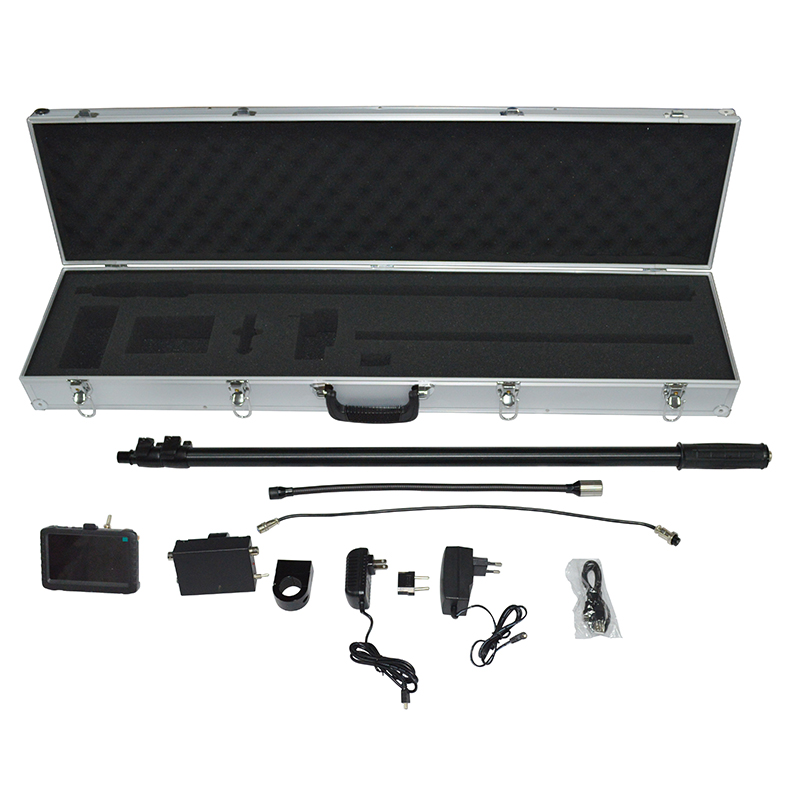

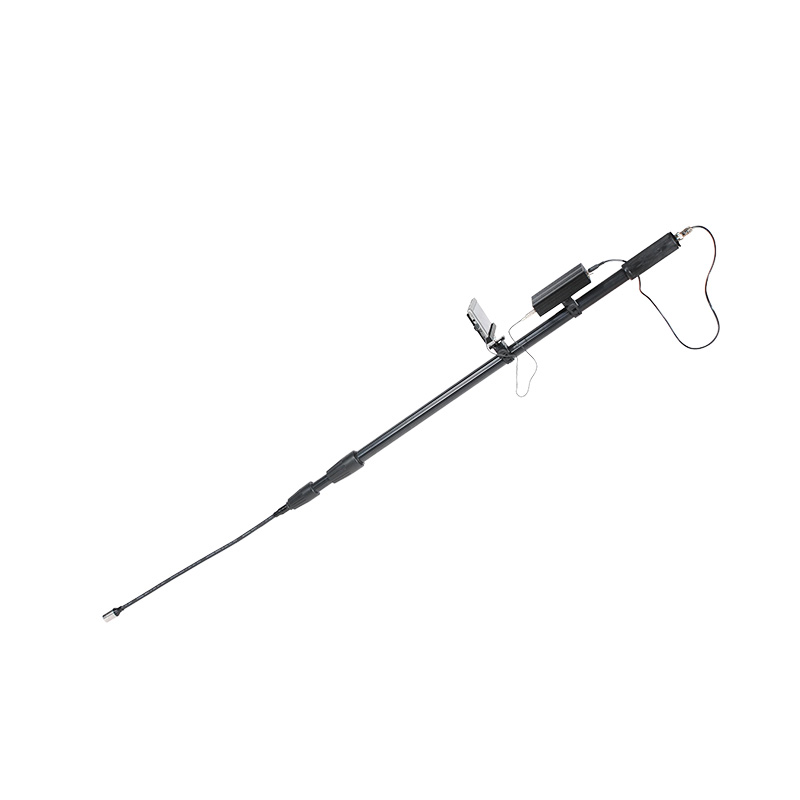

Thank you for purchasing the product! It is our latest developed HD video searching system. With state-of-art innovation technology, it helps security personnel to check clearly on front video display the spaces where are narrow, dark and cannot be reached by naked eyes. It will simplify troublesome inspection work and help save plenty of valuable time, improving security check efficiency. The product uses high-capacity Lithium battery for power supply which lasts 6 hours, avoiding frequent battery replacements. The standard aluminum-alloy carry case is solid enough to prevent equipment from damage by drop, shock or press. For detailed instructions, please refer to the operation manual.

Product Parameters:

Waterproof Camera

1.Dimension: 23mmx50mm.

2.Flexible pipe: 500mm

3.Camera casing:Stainless steel 304

4.Camera lens: Sapphire blue

5.Sensor dimension:1/4 inch

6.Senor pixel:PAL@720X576/NTSC: 720X480

7.Lens visible angle: 120 degrees

8.Camera adjustable angle: Arbitrary angle

9.Camera light source: 12 LEDs10.Waterproof standard: IP68

11.Working voltage: DC 12V, working current: 100mA

12.Rod Max length: 3.1m

13.Working temperature:-10℃-50℃

14.LCD Screen：

LCD dimension: 7-inch, 16：9

Resolution:480*320*RGB

Power supply:5V DC

SNR：85dB

USB：2.0（speed）

Output：20Hz---20KHz

15.Connecting Rod Length:3.2M

16.Supplementary lighting: 12LEDs

17.N.W: 1250G G.W:5.8KG

18.Package Size: 110*30*30CM（2pcs/ctn）
