Product Introduction:

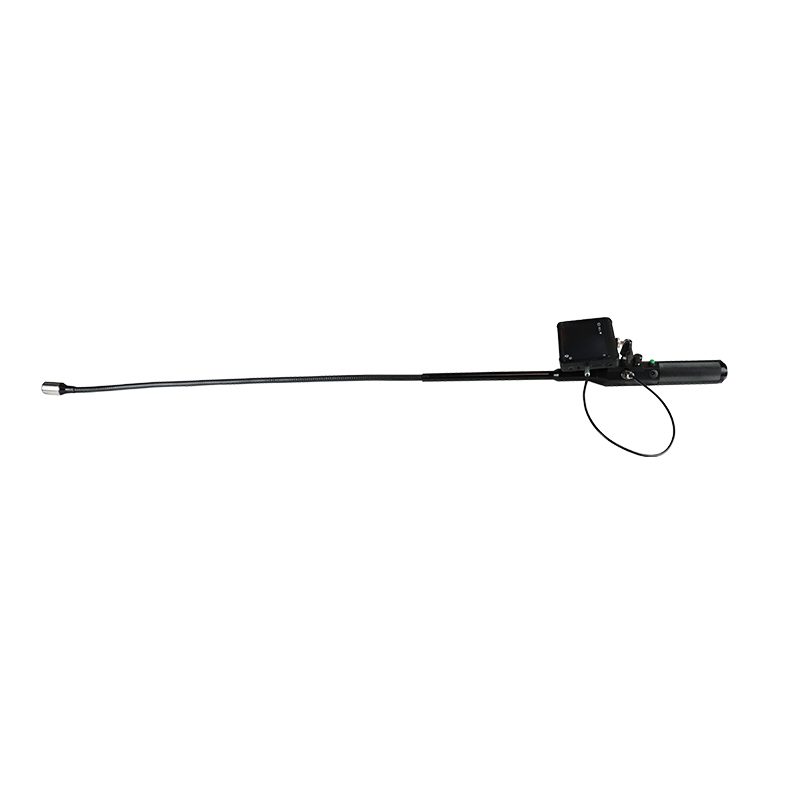

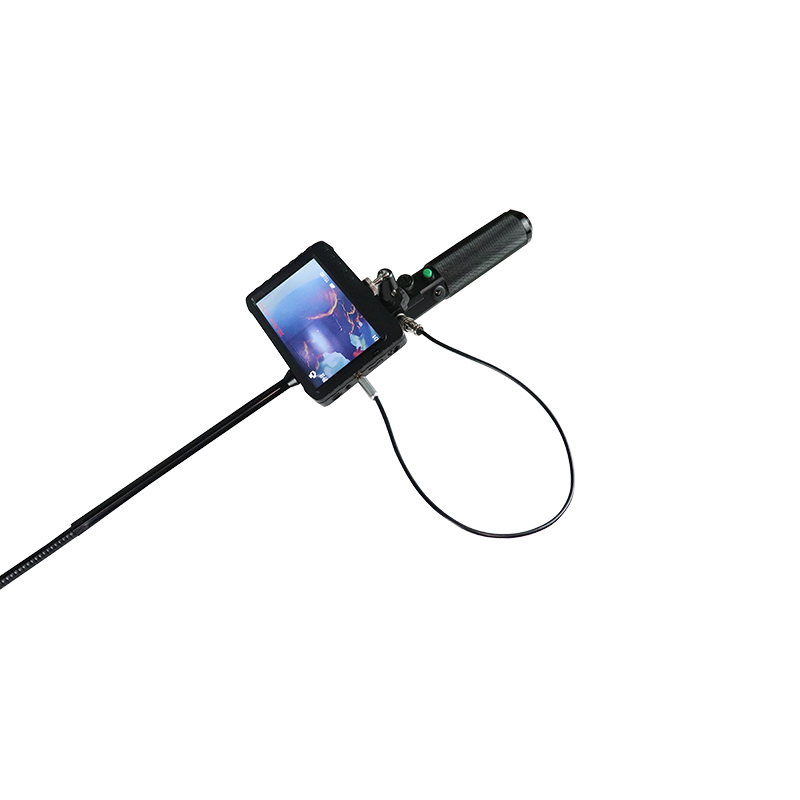

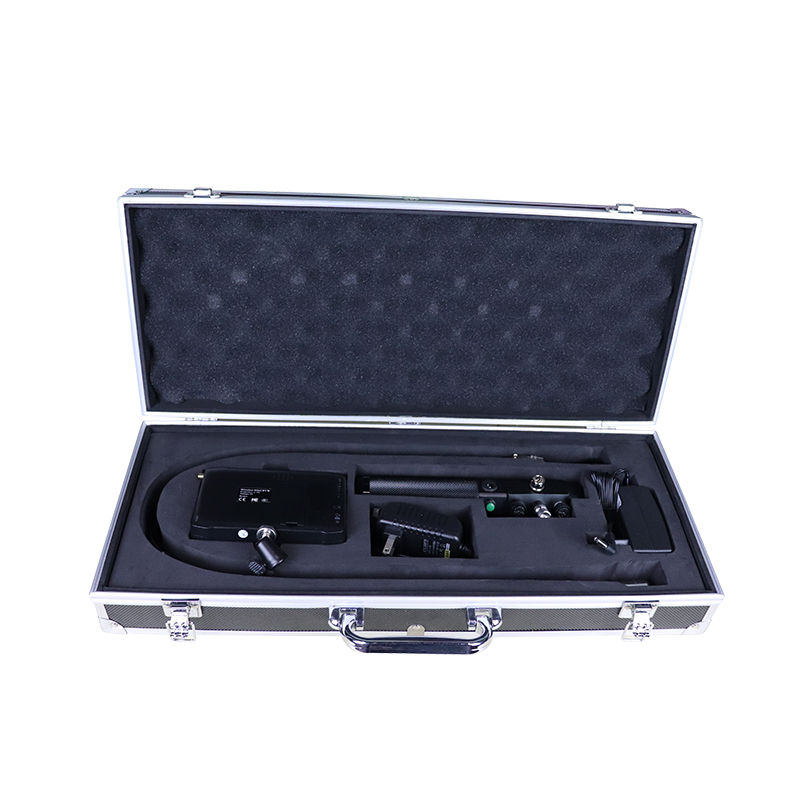

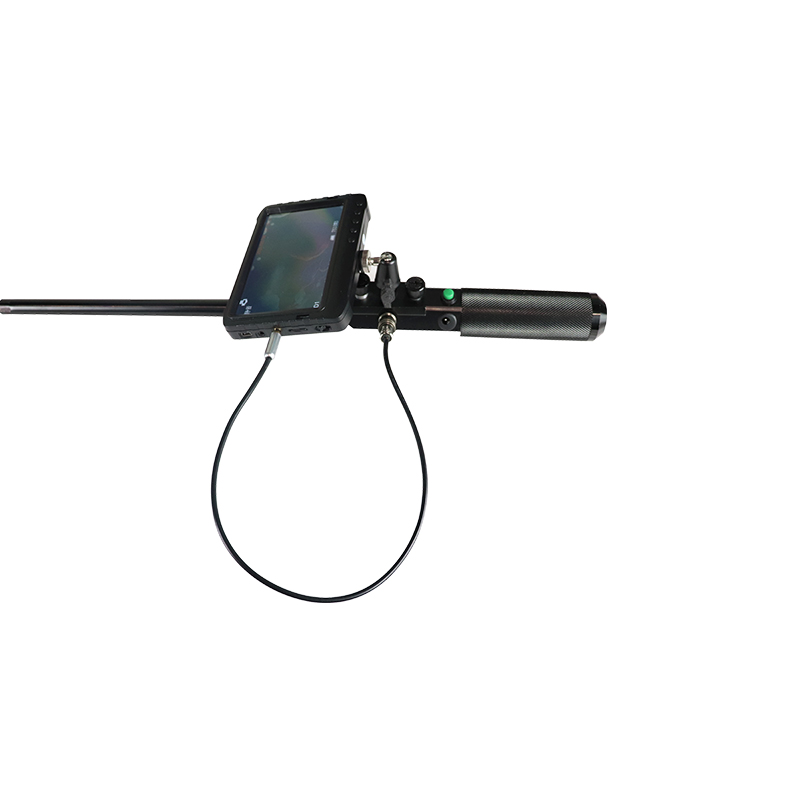

Thank you for purchasing the product! V7D is our latest developed HD Under Vehicle Camera with DVR recording function, it helps security personnel to check clearly on front video display the spaces where are narrow, dark and cannot be reached by naked eyes. It will simplify troublesome inspection work and help save plenty of valuable time, improving security check efficiency. The product uses high-capacity Lithium battery for power supply which lasts 8 hours, avoiding frequent battery replacements. The standard aluminum-alloy carry case is solid enough to prevent equipment from damage by drop, shock or press.

Product Parameters:

-Waterproof Camera：

1.Dimension: 23mmx50mm.

2.Flexible pipe: 940mm

3.Camera casing:Stainless steel 304

4.Camera lens: Sapphire blue

5.Sensor dimension:1/4 inch

6.Senor pixel:PAL@720X576/NTSC: 720X480

7.Lens visible angle: 120 degrees

8.Camera adjustable angle: Arbitrary angle

9.Camera light source: 12 LEDs

10.Waterproof standard: IP68

11.Working voltage: DC 12V, working current: 100mA

12.Max length: 1.16m

13.Working temperature:-10℃-50℃

14.Gross weight:2.7kg

15.Package size:52*23.5*9cm

-LCD Screen：

1.LCD dimension: 7-inch, 16:9

2.Resolution:480*320*RGB

3.Power supply:5V DC(Built-in Li-ion battery)

4.Noise:85Db

5.USB interface:2.0(High speed)

6.Output power:20Hz---20KHz

Feature and Application:

It is used for inspection the container and other special occasions if they are normal.Also search life after the earthquake.
