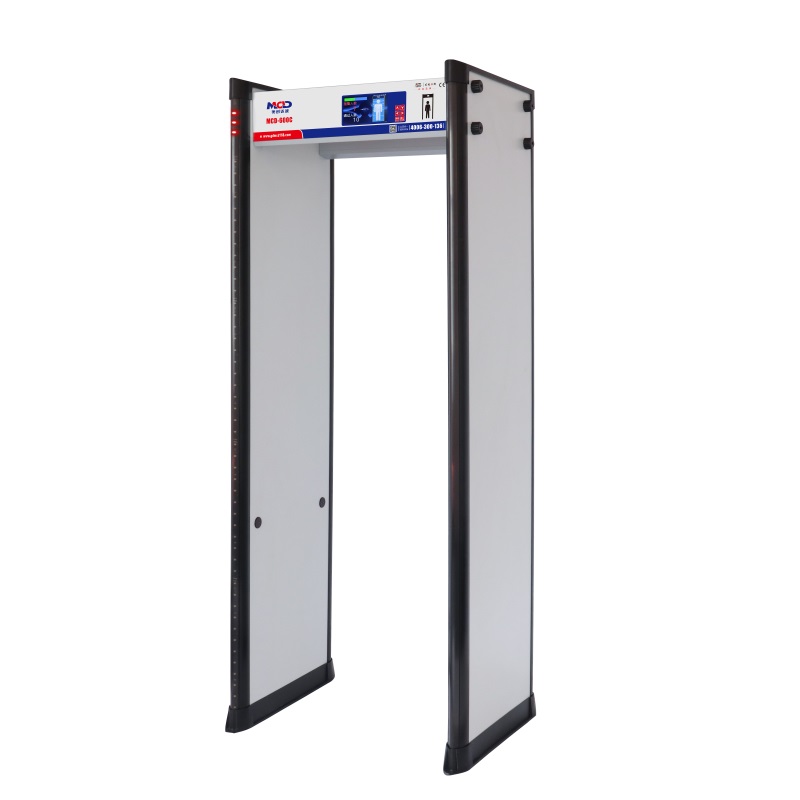

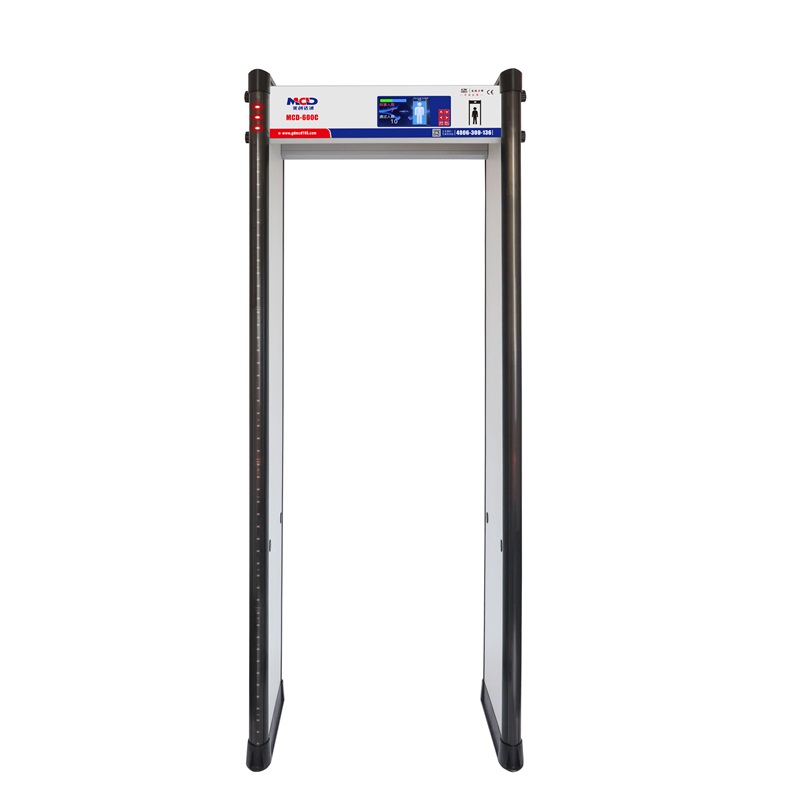

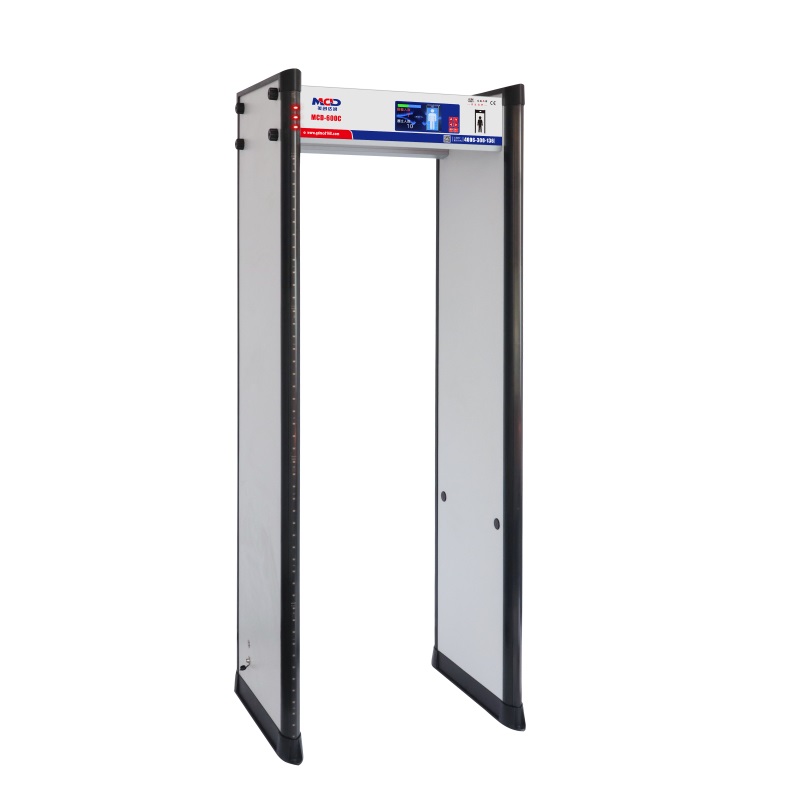

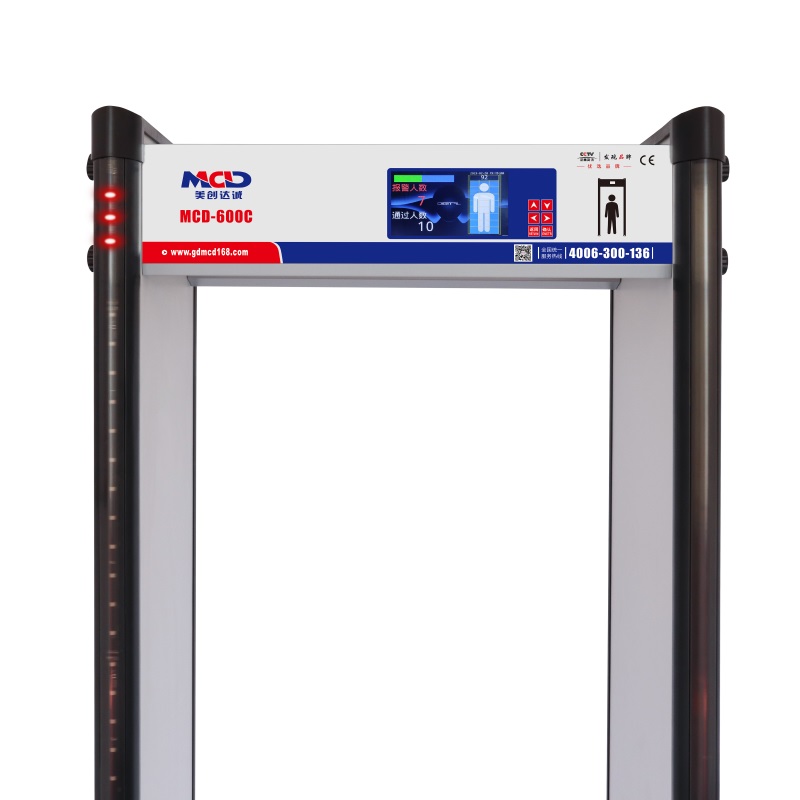

Precise Walkthrough Metal Detectors Omnidirectional Detecting a Cell Phone

 Technical parameters

1. Sensitivity: 255

2. Display: 7-inch LCD screen display

3. Working environment: -20ºC～45ºC Relative humidity: 0～95% without condensation

4. Zone display: 8 zones before and after the light bar, you can switch 8 zones, 16 zones.

5. Electricity source: AC110~240V/50~60 Hz

6. Channel size: 1990mm (H) × 720 (W) × 580mm (D)

7. Appearance size: 2200mm (H)×830(W)×580mm (D)

8. Power consumption ≤20W

9. Operating frequency: 4~7KHz

10. Weight of the whole machine: 60kg

11. Material: the outer body is made of waterproof high-strength synthetic material, the bottom is equipped with fixed parts waterproof, moisture-proof, shockproof.

12. Detection channels: 1~50.

13. Mobile phone detection mode: school/examination center.

14. Application scenarios: 24 kinds of application scenarios are available.

15. Volume setting: set the size of the alarm volume, setting range: 1 to 100 parameter values.

16. Tone setting: set the tone of the alarm sound; setting range: 1 to 20 parameter values.

17. Timing setting: Set the alarm duration, setting range: 1 to 100 parameter values.

18. Language switching function: support Chinese English switching.

19. History record query function: you can query the alarm record, through the number of records.

20. brightness settings: you can choose 0-250 different brightness parameters, the greater the value of the higher the brightness, the smaller the value of the lower the brightness.

21. Mobile phone detection: 360 ° omnidirectional cell phone through the alarm, excluding keys, buttons, watches, belt buckles and other metals.
