– High Definition Image
– Dynamic Processing
– Intelligent Alarm
– Self-Diagnose
– Shutdown With One Key
– Switchable 4/7 Color Imaging
– Top-ranking Multi-energy Imaging
– Meticulous Material Discrimination
– Bidirectional Full Tunnel Scanning
– Explosive and Narcotics Detection

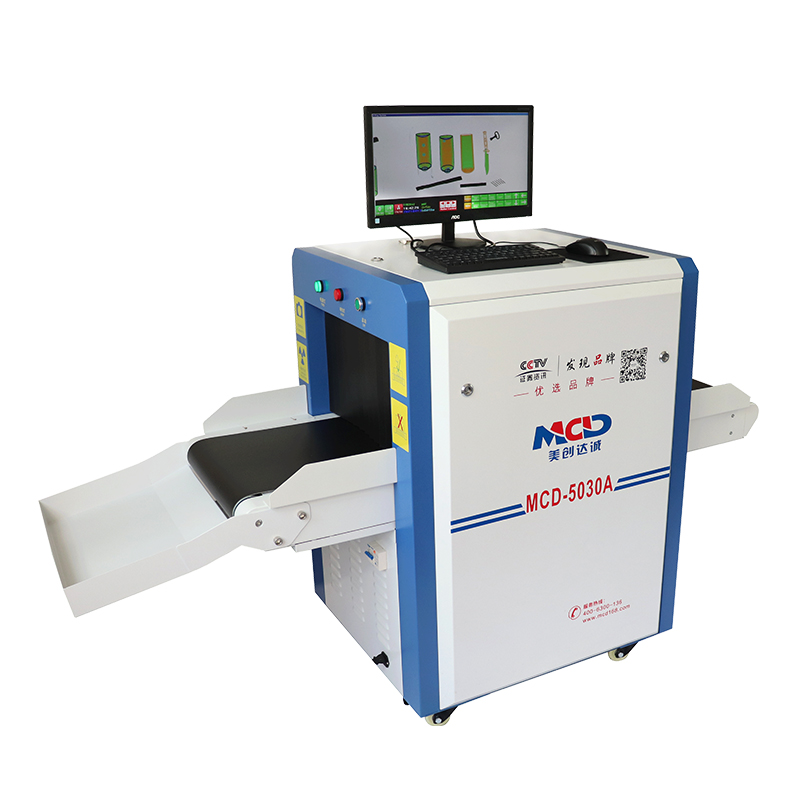

Type: X-Ray Baggage Scanner
Brand: MCD
SKU: MCD-5030A
Quantity:
Standard Features
Twin-channel Detection System
Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.
High Definition Image
Adopt new generation of HD schema design, providing clear images and stable performance.

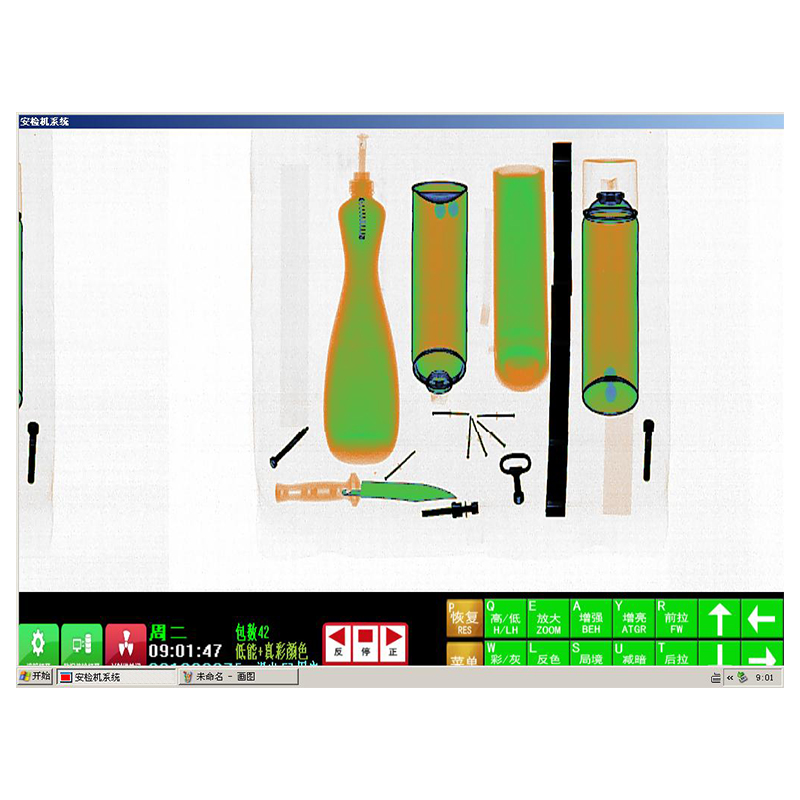

Dynamic Processing
Real-time display, optimization functions like edge enhancement, amplification and so on.
Image Management
Built-in image management system, which enables users to browse saved images quickly.
Intelligent Alarm
User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.

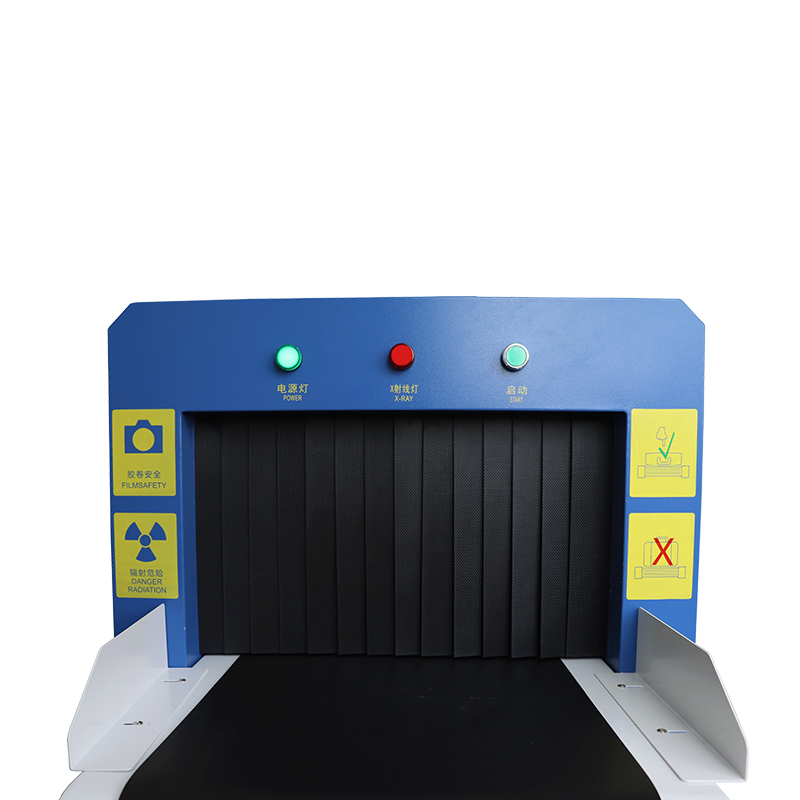

Green Lead Curtain
Wear-resistant, pollution-free, long service life.
Self-Diagnose
Automatically prompt when failure is detected, and be convenient to maintain.
Shutdown With One Key
When you try to turn off the equipment, just rotate the key, which is convenient and simple.
Network Interface
Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.

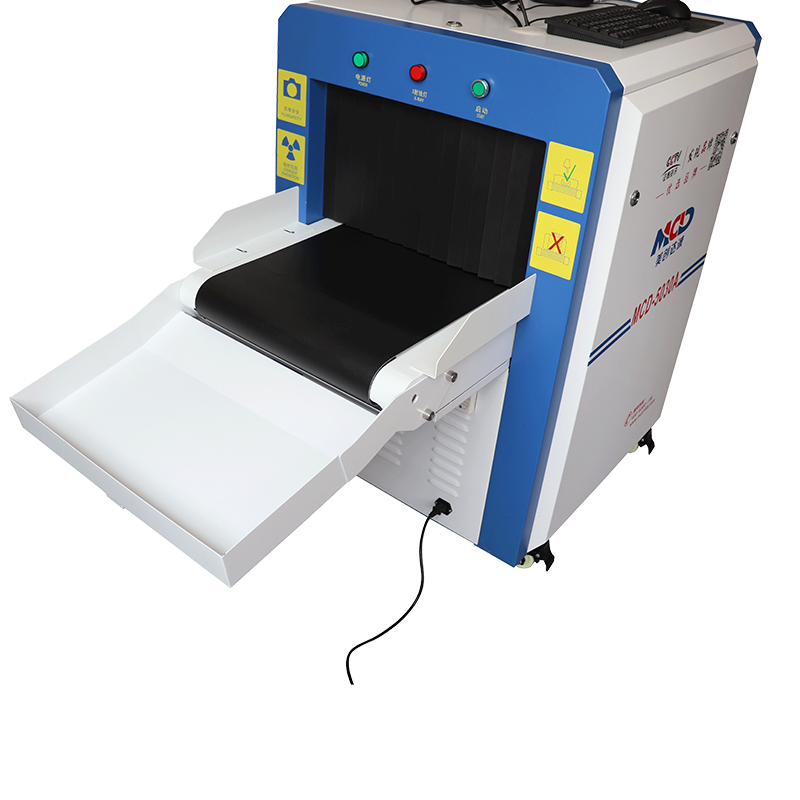

Intelligent Roller
Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.
Threat Image Protection
TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.
Usage/Application | Hotel, Bank | 888 | Image System | |
General Parameters | X-ray Sensor | L-shaped photo diode array (mono energetic), 16bit depth | ||
Tunnel Size Conveyor | 500 mm (Width) * 300 mm (Height)) | Monitor | High resolution color, LCD compatible, 19inch | |
Conveyor Speed | 0.22/ sec | Image Processing | Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind. | |
Conveyor Max Load | 150 kg (Evenly distributed) | Image Grayness Level | 4096 | |
Pass Rate | 720 piece/hour | Image Maximum Resolution | 1024*768 pixels | |
Metal Wire Resolution | 32 AWG / Φ0.202 mm | Image Processing | 24bit real time processing in real time | |
Spatial Resolution | Level: dia 1.0 mm Vertical: dia 1.3 mm | Image Storage | 200,000 images in real time | |
Penetration Through Steel Plate | 14 mm | Zone & Zoom | 1-9 image zones, enlargement of 2, 4, 8, 16 times, fully screen continuous observation. | |
Dose per Inspection | Less than 1.0 uGy/h | Installation Data | ||
Film Safety | Guaranteed ISO 1600 Film | Operating Environment / Humidity | 0 to 45 Degree C / 20 - 95% (non-condensing) | |
X-ray Leakage | Less than 1 uGy/h at 5cm from frame house | Storage Temperature / Humidity | -20 to 60 Degree C / 20 ~ 95% (non-condensing) | |
*With continued R&D, MCD reservers the right to amend specifications without notice. | Operating Power | 220VAC (± 10%) 50 ± 3Hz | ||
Power Consumption | 1.0 KW (max), 0.3KW (working) | |||
X-ray Generator | System Noise | ＜58 dB | ||
Generator Direction | From top to bottom | |||
Generator Angle | 80 degrees downward | Package Size | ||
Anode Voltage | 80KV | Unit Net Weight | 190 Kgs | |
Anode Power | 0.6 mA | Unit Gross Weight | 240 KG | |
X-ray Sensor | single generator | Wooden size | 162*85*132 cm | |
Cooling/Duty Cycle | 0%-90% (non-condensing) | CBM | 1.82 CBM | |
