Product Advantage

Intelligent identification: it can automatically identify and exclude daily necessities for cell phone detection.

LINUX SYSTEM: Strong stability and wide range of extended functions.

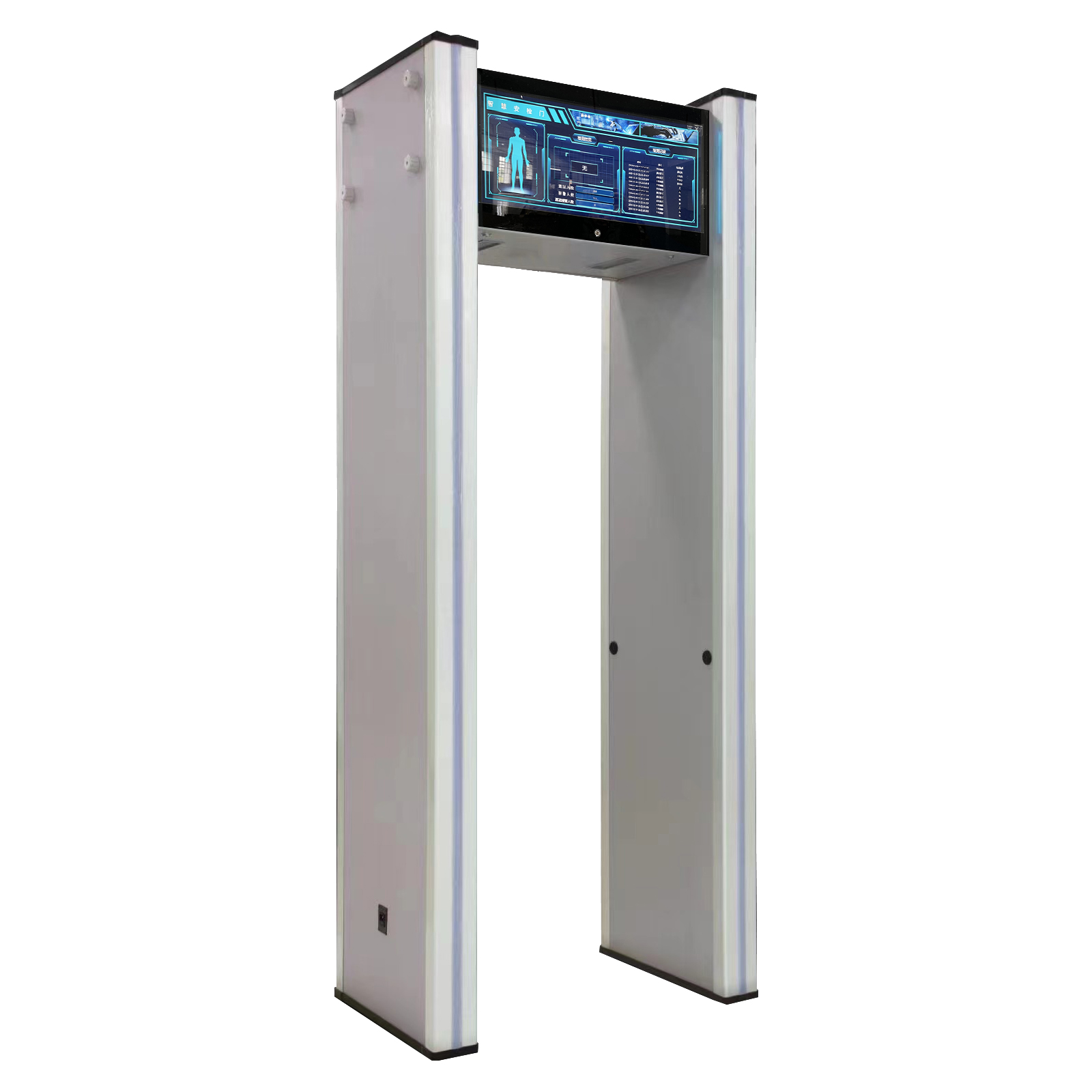

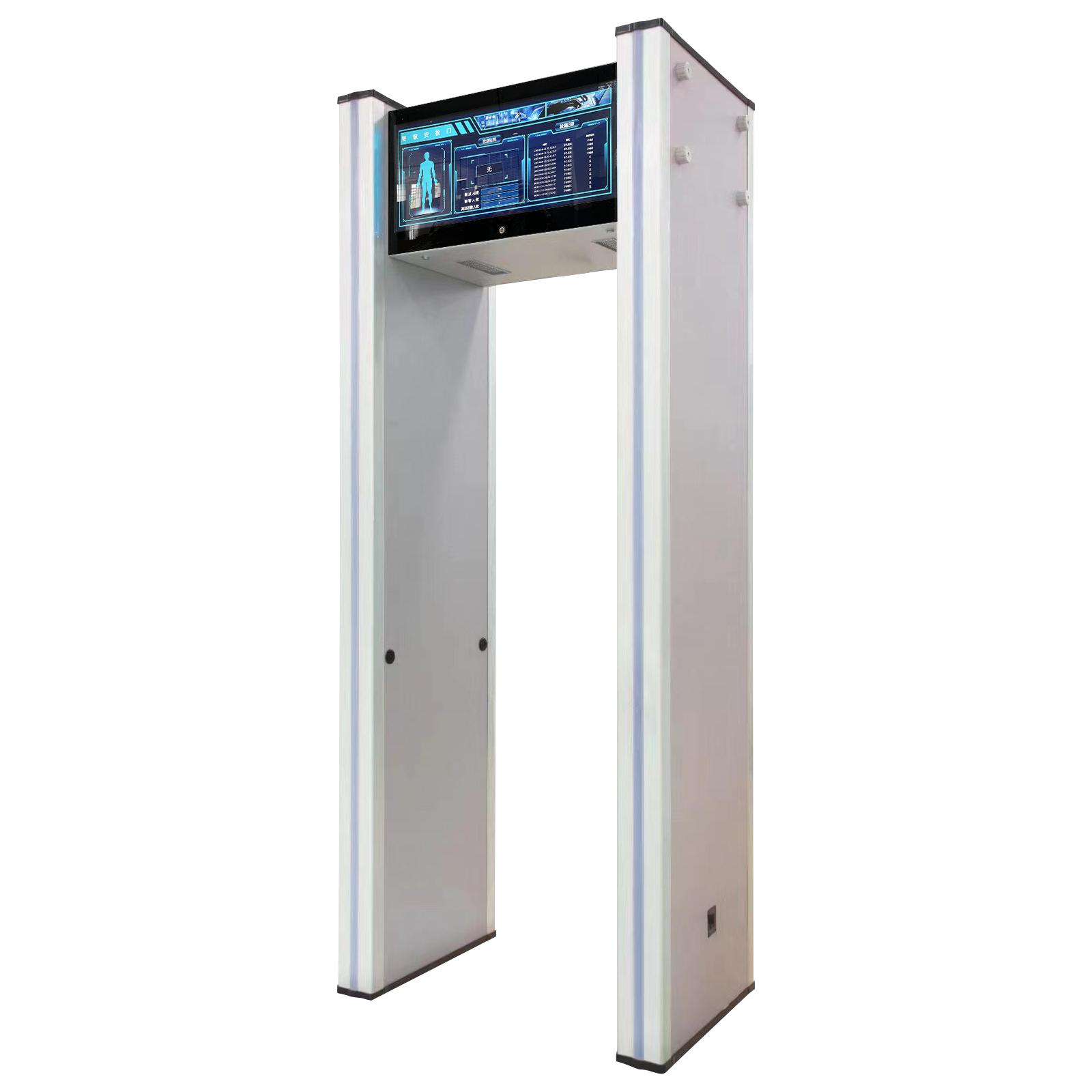

Wide-body door design: the shell is stable, strong, durable and non-deformed.

Auto-calibration: the device is equipped with auto-calibration mode, which is automatically calibrated according to the site when installing and shielded from interference.

Signal graphic: graphic waveform display of detection signal, equipment status at a glance.

Body temperature screening (optional): built-in high-precision miniature 24-hour dynamic thermal imaging body temperature monitor, all-weather, uninterrupted body temperature scanning and screening of passers-by.

Voice announcement: with dangerous goods voice announcement, high temperature voice announcement function.

Face Capture (optional): Capture the passing personnel, real-time complete display of personnel passing information.

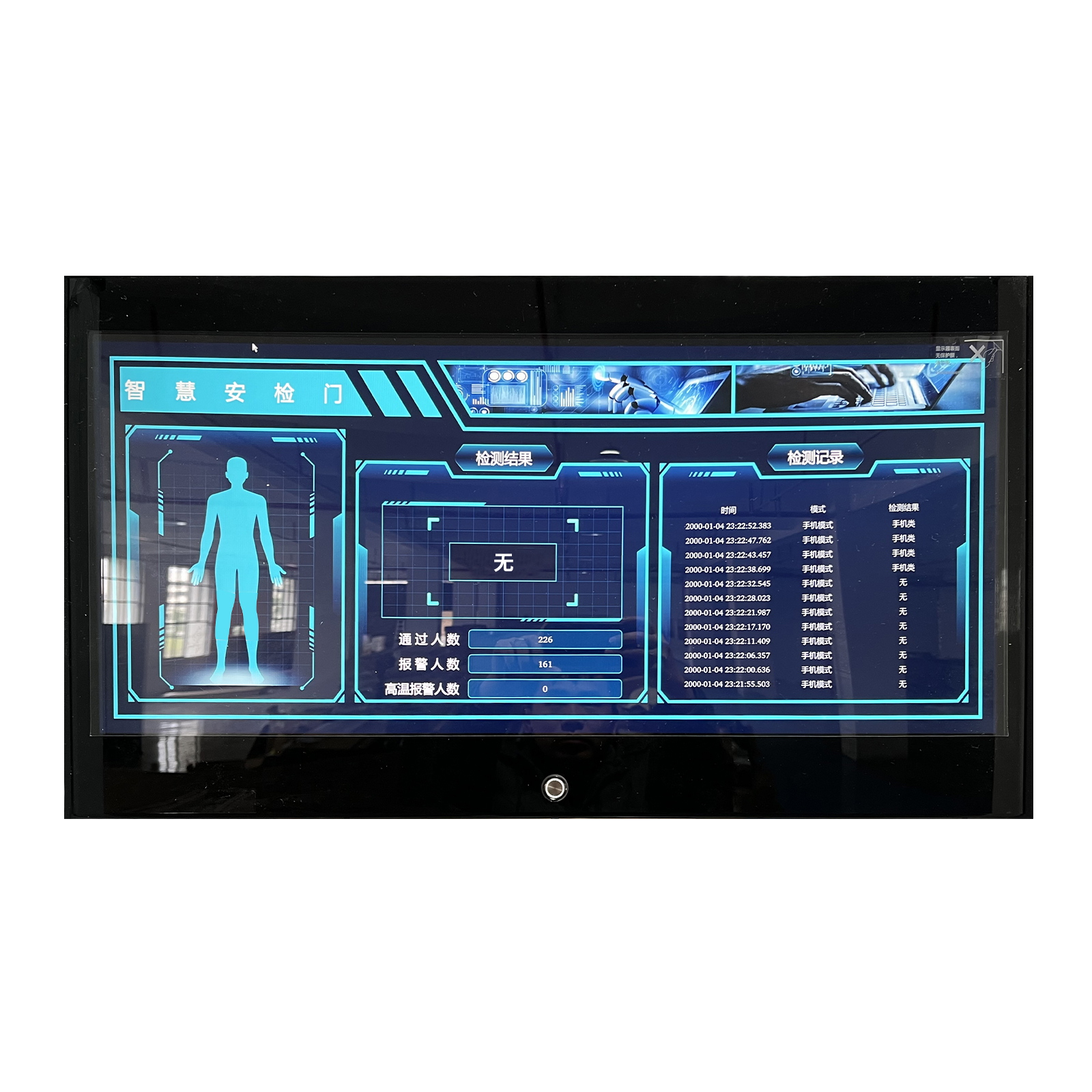

Large screen display: 29-inch LCD screen display, all kinds of information intuitive and clear.

USB upgrade: application software can be upgraded via USB.

Multi-zone alarm function: left and right sides have 5 zones, warning cell phone alarm position.

Modular component design: easy and fast transportation and maintenance.

Product Features

Daily necessities filtering: exclude belt buckles, eyeglasses, pens, stationery boxes and other daily necessities for cell phone detection.

Detect zone: the product is divided into 12 defense zones, and suspicious objects can be accurately displayed in each zone.

Counting the number of people: The main interface automatically displays the updated number of people passing through and the number of alarms.

Four-side positioning lights: the door body has LED lights on all four sides, which can intuitively display the area where the prohibited items are located through the positioning lights, and the viewing angle can be up to 360°.

Sound and light alarm: with voice alarm, light bar flash alarm function.

High-performance CPU: adopts 6-core high-performance chip with main frequency over 1.8GHz.

Remote control operation: use wireless mouse and keyboard to set parameters, parameters can be set password protection, non-authorized personnel can not be operated.

Network management: reserved communication interface, can share data with computer and security platform.

Linkage function: reserved linkage interface, can be linked with the wing gate, three roller gate control.

Safety protection: in line with international safety standards, harmless to cardiac pacemaker wearers, pregnant women, magnetic media, etc.

Indicator debugging: with indicator manual debugging function, can quickly troubleshoot.

Technical standard

Strictly implement the national standard GB15210-2018 General Technical Specification for Pass-through Metal Detectors.

Parameters

Operating system: LINUX

CPU:RK3399 6-core core

RAM:8GB

ROM:8GB

Display:LG 29 inch

Visible light sensor: 2 megapixels

Visible light resolution:1920×1080

Temperature measurement range:30℃~50℃

Thermal imaging resolution: 256*192

Accuracy: ±0.3℃

Transportation weight: about 150 kg

Power consumption: <40W

Operating temperature: -10℃~40℃

Operating humidity: 95%, non-condensing

External power supply: 187V~242V, 50/60HZ

Operating frequency: adjusted according to the installation environment

Overall dimensions: (mm) not more than 2430 (H) × 1015 (W) × 650 (D)

Channel size: (mm) not more than 2000 (H) × 710 (W) × 650 (D)
