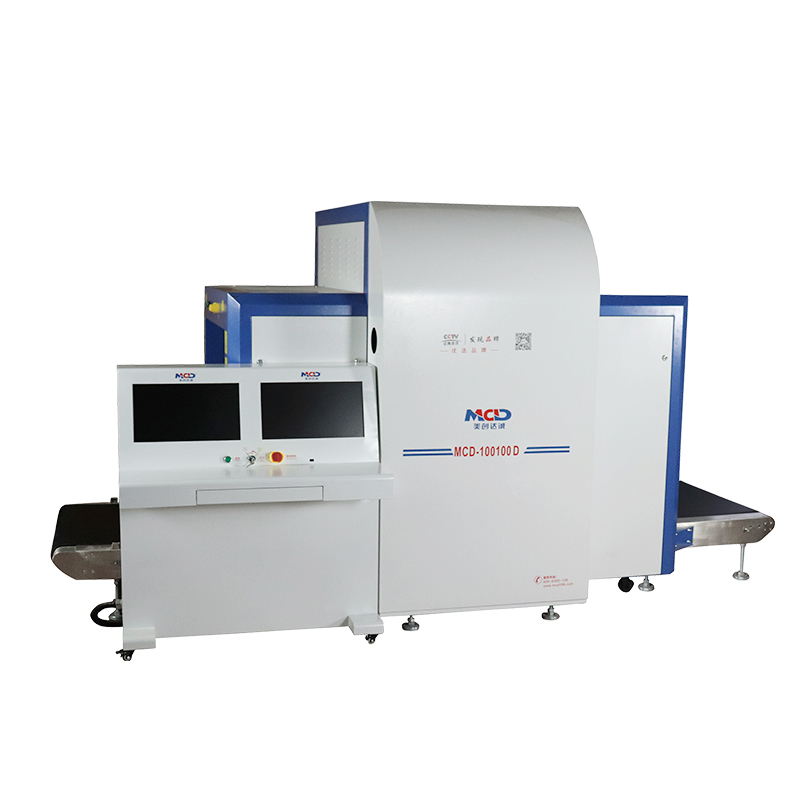

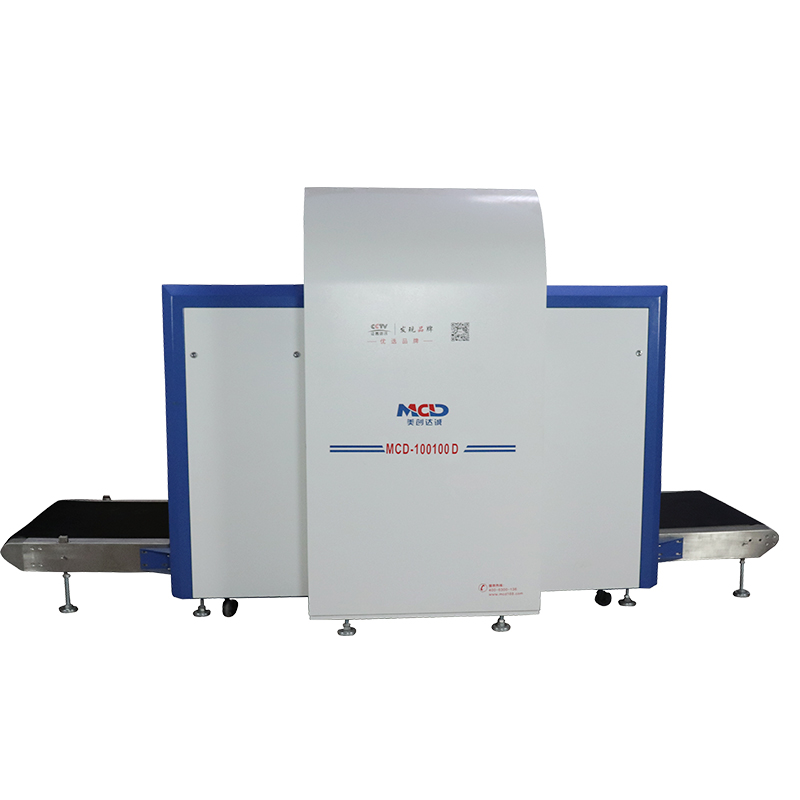

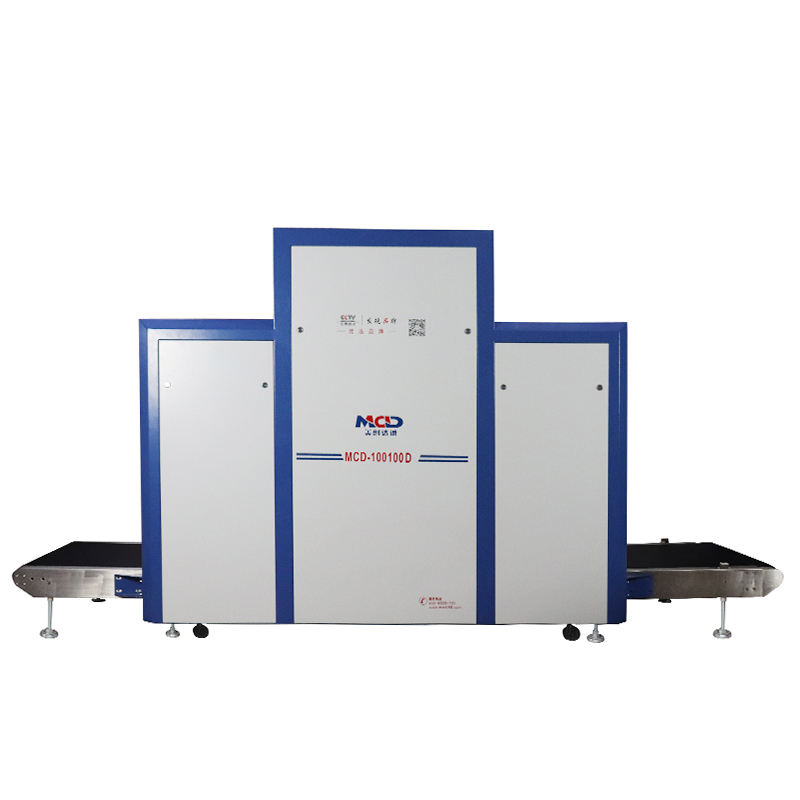

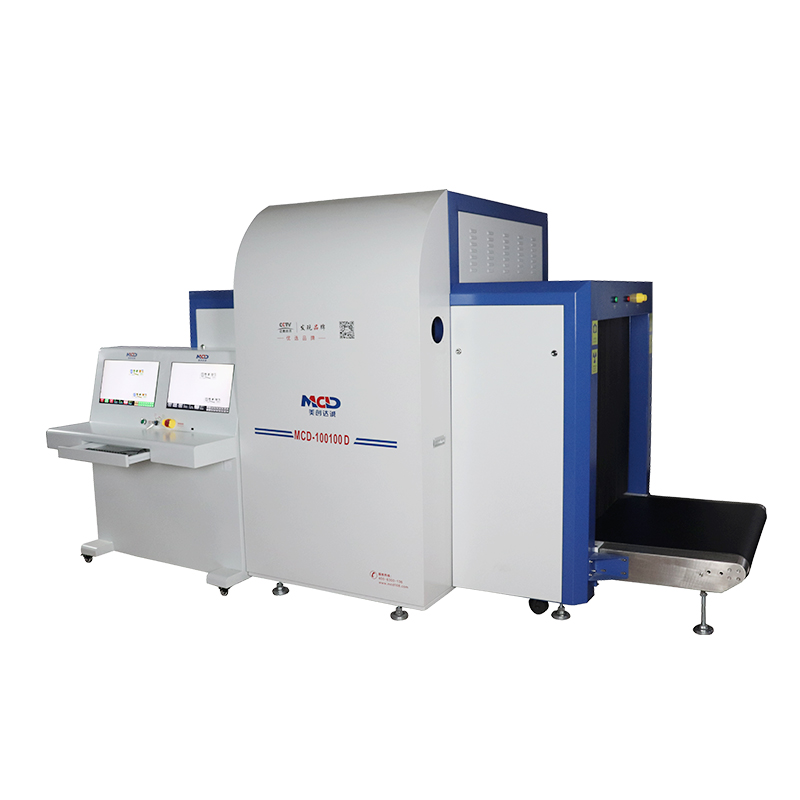

Dual MCD-100100D View X-ray Baggage Scanner for Transportation System

Share to:

– High Definition Image

– Dynamic Processing

– Intelligent Alarm

– Self-Diagnose

– Shutdown With One Key

– Switchable 4/7 Color Imaging

– Top-ranking Multi-energy Imaging

– Meticulous Material Discrimination

– Bidirectional Full Tunnel Scanning

– Explosive and Narcotics Detection

Type: X-Ray Baggage Scanner

Brand: MCD

SKU: MCD-100100D

Quantity:

Product Detaills

Standard Features


Twin-channel Detection System

Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.

High Definition Image

Adopt new generation of HD schema design, providing clear images and stable performance.

Dynamic Processing

Real-time display, optimization functions like edge enhancement, amplification and so on.

Image Management

Built-in image management system, which enables users to browse saved images quickly.

Intelligent Alarm

User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.

Green Lead Curtain

Wear-resistant, pollution-free, long service life.

Self-Diagnose

Automatically prompt when failure is detected, and be convenient to maintain.

Shutdown With One Key

When you try to turn off the equipment, just rotate the key, which is convenient and simple.

Network Interface

Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.

Intelligent Roller

Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.

Threat Image Protection

TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.





Usage/Application

airport, railway systems, military base, government facilities, commercial facilities etc.

——

Image System

Certification

CE and ISO


X-ray Sensor

L-shaped photo diode array (mono energetic), 16bit depth

General Parametersc


Monitor

High resolution color, LCD compatible, 19inch(can be customize)

Model Number

MCD-100100D


Image Processing

Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind.

Tunnel Size Conveyor

650 mm (Width) * 500 mm (Height))


Image Grayness Level

4096

Conveyor Speed

0.22/ sec


Objects distinguish

Organic in orange

Inornanic in blue

Mixture in green

Conveyor Max Load

200 kg (Evenly distributed)


High-energy/low energy

Switch from high energy to low energy

Conveyor height

350 mm or 630 mm


Image Maximum Resolution

1440*900 pixels (can be customize)

Wire Resolution

32AWGΦ0.202mm solid copper wire


Image Processing

24bit real time processing in real time

Pass resolution

Typical AWG43


Image Storage

500,000 images in real time

Spatial Resolution

Level: dia 1.0 mm

Vertical: dia 1.0 mm


Other Functions

Fault diagnosis, system time setting, detection blind dots delete, X-ray source setting (analoge or digital ), alarm setting, image setting, software register, user management, date setting (machine working time , X-ray source working time, baggage counter etc.)

Penetration Through Steel Plate

43mm


Network interface

YES

Dose per Inspection

Less than 2.0 uGy/h


Energy saving function

YES

Film Safety

Guaranteed ISO 1600 Film


Installation Data

X-ray Leakage

Less than 1 uGy/h at 5cm from frame house




*With continued R&D, MCD reservers the right to amend specifications without notice.


Operating Environment / Humidity

0 to 45 Degree C / 20 - 95% (non-condensing)

X-ray Generator


Storage Temperature  / Humidity

-20 to 60 Degree C / 20 ~ 95% (non-condensing)

Generator Direction

Upward and sideward


Operating Power

220VAC (± 10%)  50 ± 3Hz

Generator Angle

80 degrees downward


Power Consumption

1.0 KW (max), 0.3KW (working)

Anode Voltage

140 KV


System Noise

55 dB

Anode Power

0.3 mA




Sensor quantity

2 Generator


Optional Features

Cooling

Oil cooling 100%


 camera video system,TIP Threat Image Projection,X-Auto sight(Threat self identification assistant function) etc.










Package Size




Unit Net Weight

1130 Kgs




Unit Gross Weight

1220 KG




Wooden size

260*140*215cm (X-ray baggage scanner machine body)

127*134*75 cm (operation desk)
