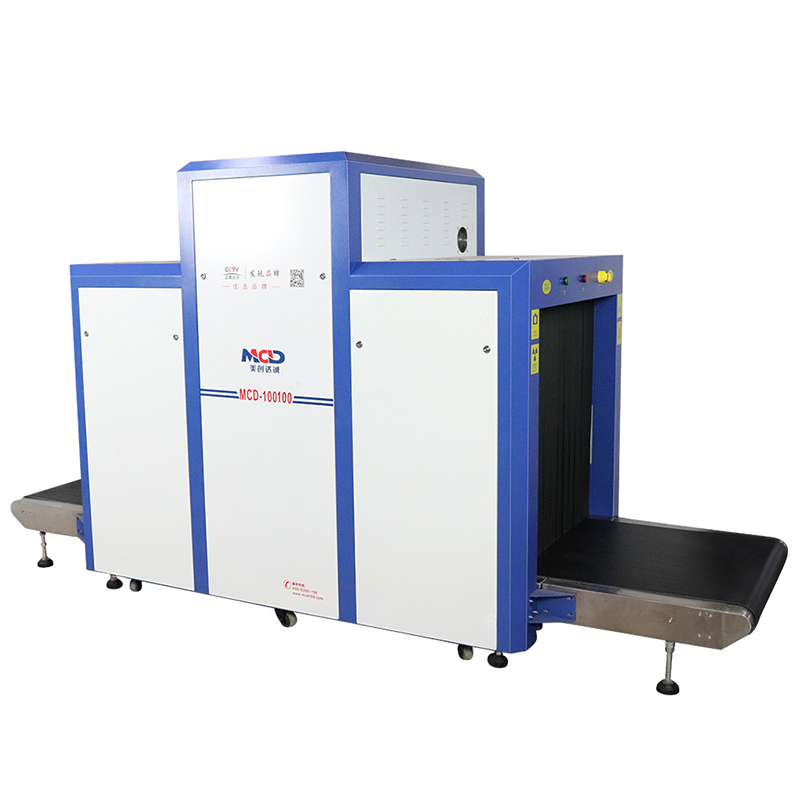

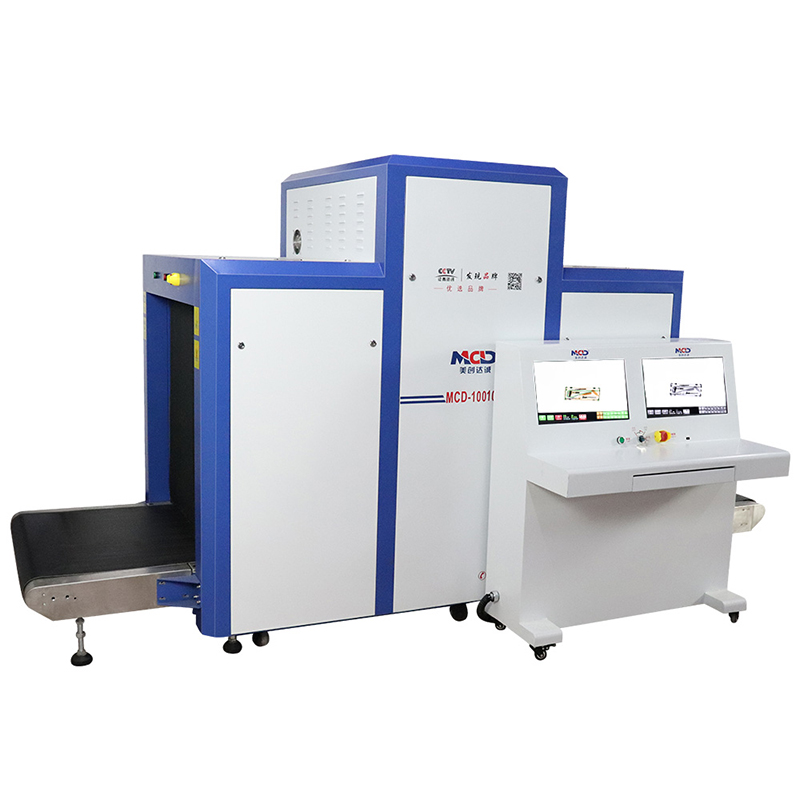

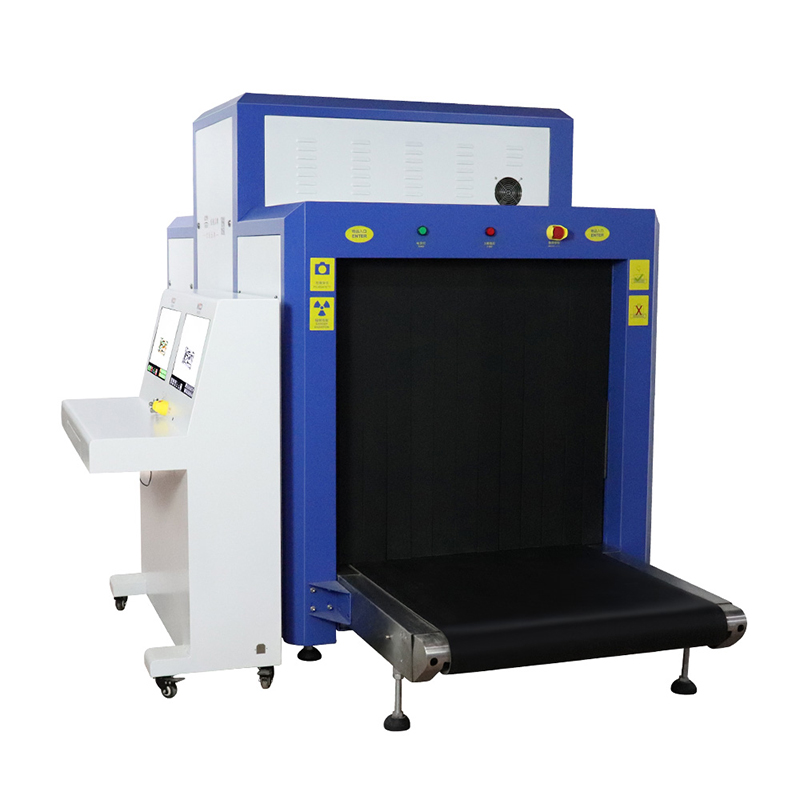

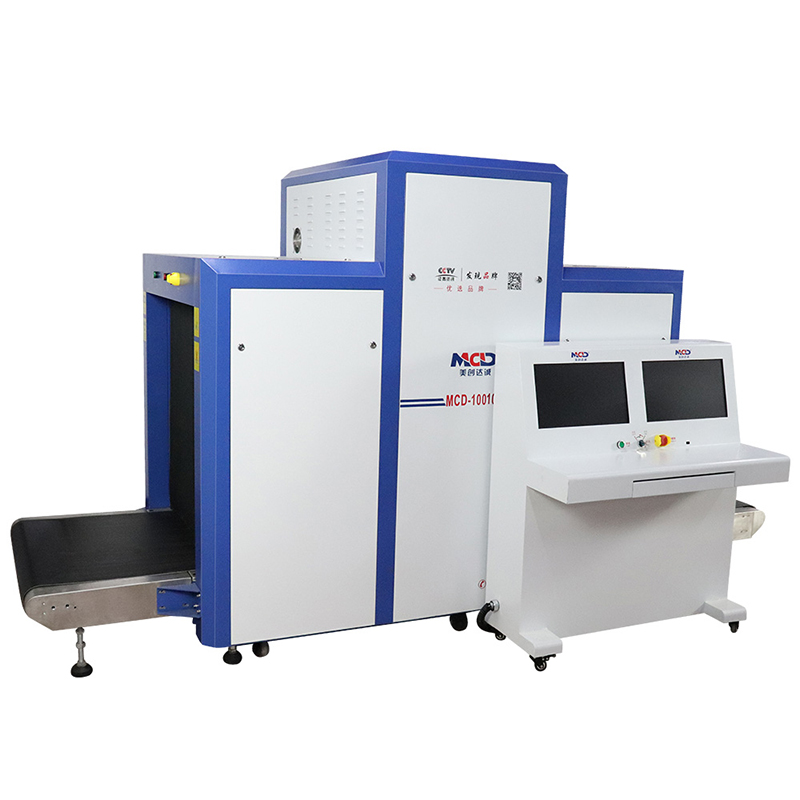

X-Ray Baggage Scanner MCD-100100C

Share to:

– High Definition Image

– Dynamic Processing

– Intelligent Alarm

– Self-Diagnose

– Shutdown With One Key

– Switchable 4/7 Color Imaging

– Top-ranking Multi-energy Imaging

– Meticulous Material Discrimination

– Bidirectional Full Tunnel Scanning

– Explosive and Narcotics Detection

Type: X-Ray Baggage Scanner

Brand: MCD

SKU: MCD-100100C

Quantity:

Product Detaills

Standard Features

Twin-channel Detection System

Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.

High Definition Image

Adopt new generation of HD schema design, providing clear images and stable performance.

Dynamic Processing

Real-time display, optimization functions like edge enhancement, amplification and so on.

Image Management

Built-in image management system, which enables users to browse saved images quickly.

Intelligent Alarm

User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.

Green Lead Curtain

Wear-resistant, pollution-free, long service life.

Self-Diagnose

Automatically prompt when failure is detected, and be convenient to maintain.

Shutdown With One Key

When you try to turn off the equipment, just rotate the key, which is convenient and simple.

Network Interface

Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.

Intelligent Roller

Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.

Threat Image Protection

TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.



Usage/Application

Hotel, bank, Mail rooms, entrance halls, prisons , schools and Government Office etc.

——

Image System

General Parametersc


X-ray Sensor

L-shaped photo diode array (multi-energetic), 16bit depth

Model Number

MCD-100100C


Monitor

High resolution color, LCD compatible, 19inch(can be customize)

Tunnel Size Conveyor

1000 mm (Width) * 1000 mm (Height))


Image Processing

Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind.

Conveyor Speed

0.22/ sec


Image Grayness Level

4096

Conveyor Max Load

250 kg (Evenly distributed)


Image Maximum Resolution

1440*900 pixels (can be customize)

Conveyor height

350 mm


Image Processing

24bit real time processing in real time

Wire Resolution

Typical 40 AWG


Image Storage

500,000 images in real time

Pass resolution

Typical AWG34


Zone & Zoom

1-9 image zones, enlargement of 2, 4, 8, 16 times, fully screen continuous observation.

Spatial Resolution

Level: dia 1.3 mm

Vertical: dia 1.0 mm


Assist to

detect drug and explosive powder

Penetration Through Steel Plate

34 mm


Objects distinguish

Organic in orange



Inornanic in blue



Mixture in green

Dose per Inspection

Less than 1.5 uGy/h


Other Functions

Fault diagnosis, system time setting, detection blind dots delete, X-ray source setting (analoge or digital ), alarm setting, image setting, software register, user management, date setting (machine working time , X-ray source working time, baggage counter etc.)

Film Safety

Guaranteed ISO 1600 Film


Network interface

YES

X-ray Leakage

Less than 2.5 uGy/h at 5cm from frame house


Energy saving function

YES

*With continued R&D, MCD reservers the right to amend specifications without notice.


Installation Data

X-ray Generator




Generator Direction

From top to bottom


Operating Environment / Humidity

0 to 45 Degree C / 20 - 95% (non-condensing)

Generator Angle

80 degrees downward


Storage Temperature  / Humidity

-20 to 60 Degree C / 20 ~ 95% (non-condensing)

Anode Voltage

140 KV


Operating Power

220VAC (± 10%)  50 ± 3Hz

Anode Power

0.5mA


Power Consumption

1.0 KW (max), 0.3KW (working)

Sensor quantity

Multi-energy


System Noise

55 dB

Cooling

Oil cooling 100%







Package Size



Unit Net Weight

1130 Kgs




Unit Gross Weight

1220 KG




Wooden size

260*140*215cm (X-ray baggage scanner machine body)

127*134*75 cm (operation desk)
