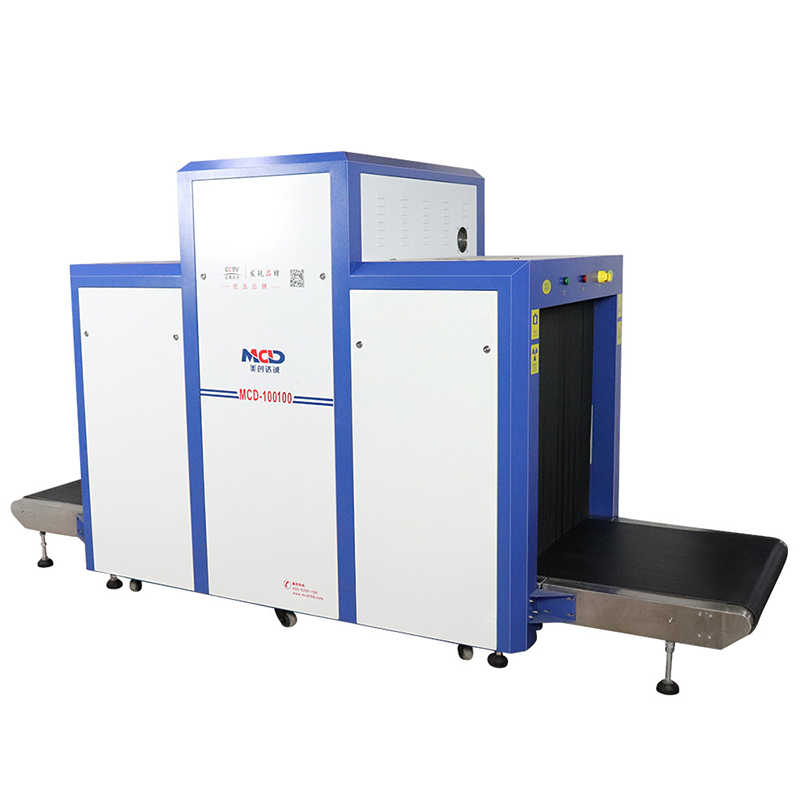

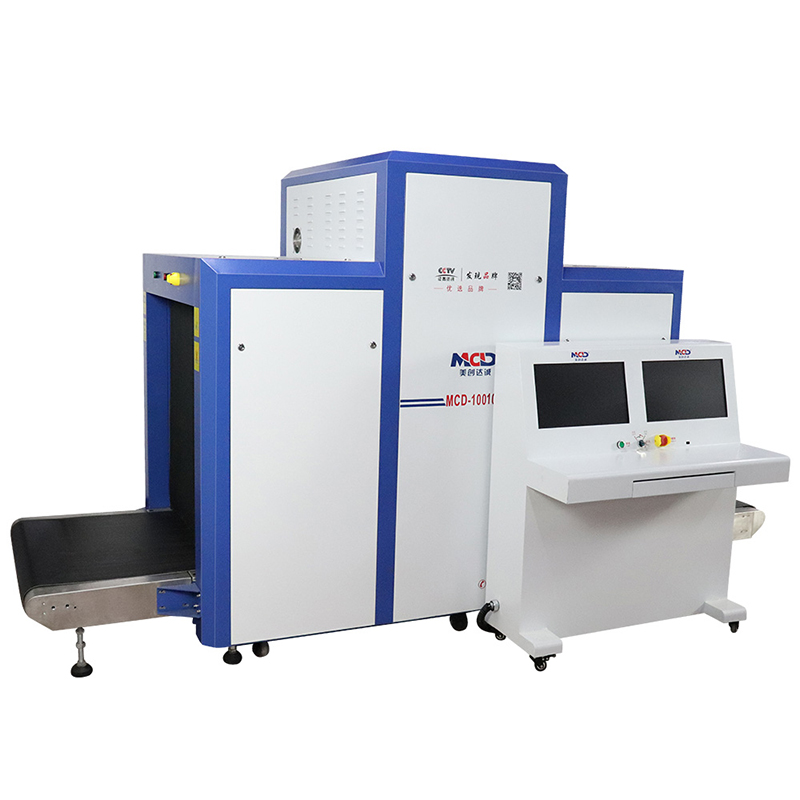

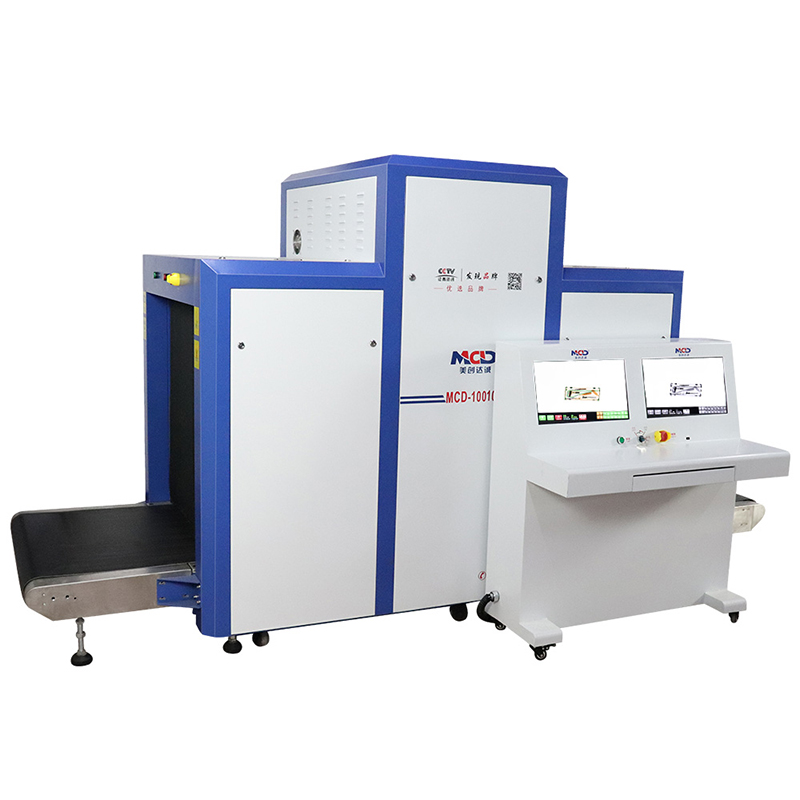

X-Ray Baggage Scanner MCD-100100A

Share to:

– High Definition Image

– Dynamic Processing

– Intelligent Alarm

– Self-Diagnose

– Shutdown With One Key

– Switchable 4/7 Color Imaging

– Top-ranking Multi-energy Imaging

– Meticulous Material Discrimination

– Bidirectional Full Tunnel Scanning

– Explosive and Narcotics Detection

Type: X-Ray Baggage Scanner

Brand: MCD

SKU: MCD-100100A

Quantity:

Product Detaills

Standard Features


Twin-channel Detection System

Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.

High Definition Image

Adopt new generation of HD schema design, providing clear images and stable performance.

Dynamic Processing

Real-time display, optimization functions like edge enhancement, amplification and so on.

Image Management

Built-in image management system, which enables users to browse saved images quickly.

Intelligent Alarm

User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.

Green Lead Curtain

Wear-resistant, pollution-free, long service life.

Self-Diagnose

Automatically prompt when failure is detected, and be convenient to maintain.

Shutdown With One Key

When you try to turn off the equipment, just rotate the key, which is convenient and simple.

Network Interface

Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.

Intelligent Roller

Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.

Threat Image Protection

TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.



Usage/Application

logistics company, airport x-ray security checking for luggage, and hotel baggage security inspection in the lobby,Olympics, Expo,summit ,metro and railways etc.

——

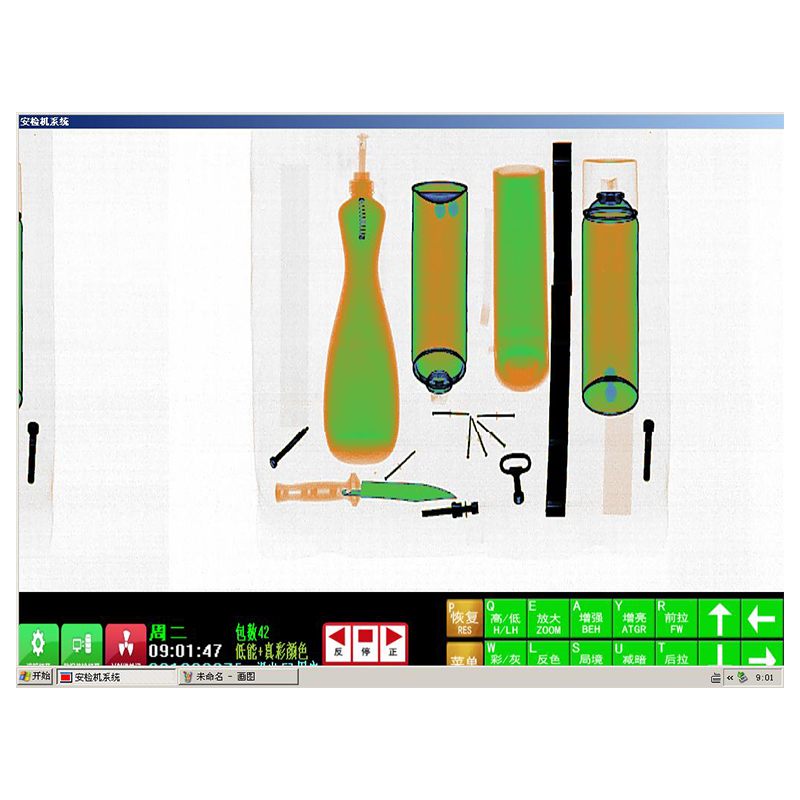

Image System

Assist to

detect drug and explosive powder


X-ray Sensor

L-shaped photo diode array (mono energetic), 16bit depth

General Parameters


Monitor

High resolution color, LCD compatible, 19inch

Model number

MCD-100100A


Image Processing

Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind.

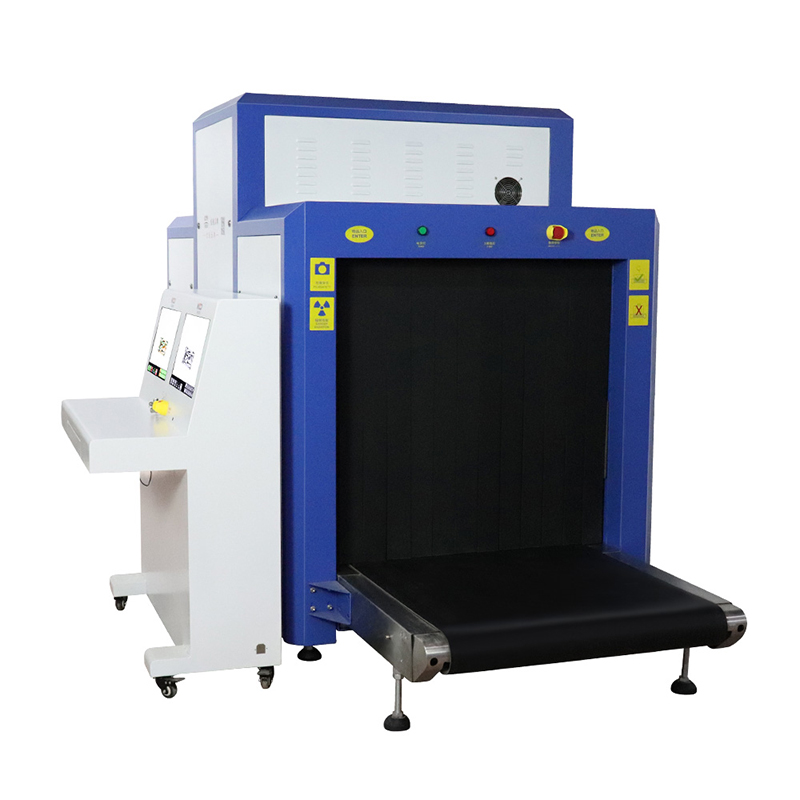

Tunnel Size Conveyor

1000 mm (Width) * 1000 mm (Height))


Image Grayness Level

4096

Conveyor Speed

0.22/ sec


Image Maximum Resolution

1024*768 pixels

Conveyor height

300 mm


Image Processing

24bit real time processing in real time

Conveyor Max Load

250 kg (Evenly distributed)


Image Storage

200,000 images in real time

Single inspection dosage

< 1.0µsv


Zone & Zoom

1-9 image zones, enlargement of 2, 4, 8, 16 times, fully screen continuous observation.

Wire Resolution

40AWG




Spatial Resolution

Level: dia 1.0 mm

Vertical: dia 1.0 mm


Other function

Date & Time Display, Luggage Counting, System Working Timing, X-Ray Emission,Working Status Display, User Management, Fault Self-diagnosis and Maintenance Functions, Alarm Function, Urgent Stop, Limits of Authority Management for Operator,Self-check Power-On, Image Magnification Display, Save and Retrieval, Image Navigation,Bi-directional Scanning, Image Recognition Training, Network Interface,Browse, One Key to Shutdown, Save As, Plication.

Penetration Through Steel Plate

14 mm


Installation Data

Maximum leakage radiation

Less than 1.0 uGy/h


Operating Environment / Humidity

0 to 45 Degree C / 20 - 95% (non-condensing)

Film Safety

Guaranteed ISO 1600 Film


Storage Temperature  / Humidity

-20 to 60 Degree C / 20 ~ 95% (non-condensing)

X-ray Leakage

Less than 1 uGy/h at 5cm from frame house


Operating Power

220VAC (± 10%)  50 ± 3Hz

*With continued R&D, MCD reservers the right to amend specifications without notice.


Power Consumption

1.0 KW (max), 0.3KW (working)

This model designed for railway, airport, custom, port and other critical areas


System Noise

55 dB

X-ray Generator




Generator Direction

From top to bottom


Package Size

Generator Angle

80 degrees downward


Unit Net Weight

1130 Kgs

Anode Voltage

80KV


Unit Gross Weight

1220 Kgs

Anode Power

0.6 mA


Wooden size

260*140*215 cm ( X ray machine)

127*134*75 cm ( operation desk)

X-ray Sensor

single generator




Cooling/Duty Cycle

0%-90% (non-condensing)
