– High Definition Image
– Dynamic Processing
– Intelligent Alarm
– Self-Diagnose
– Shutdown With One Key
– Switchable 4/7 Color Imaging
– Top-ranking Multi-energy Imaging
– Meticulous Material Discrimination
– Bidirectional Full Tunnel Scanning
– Explosive and Narcotics Detection

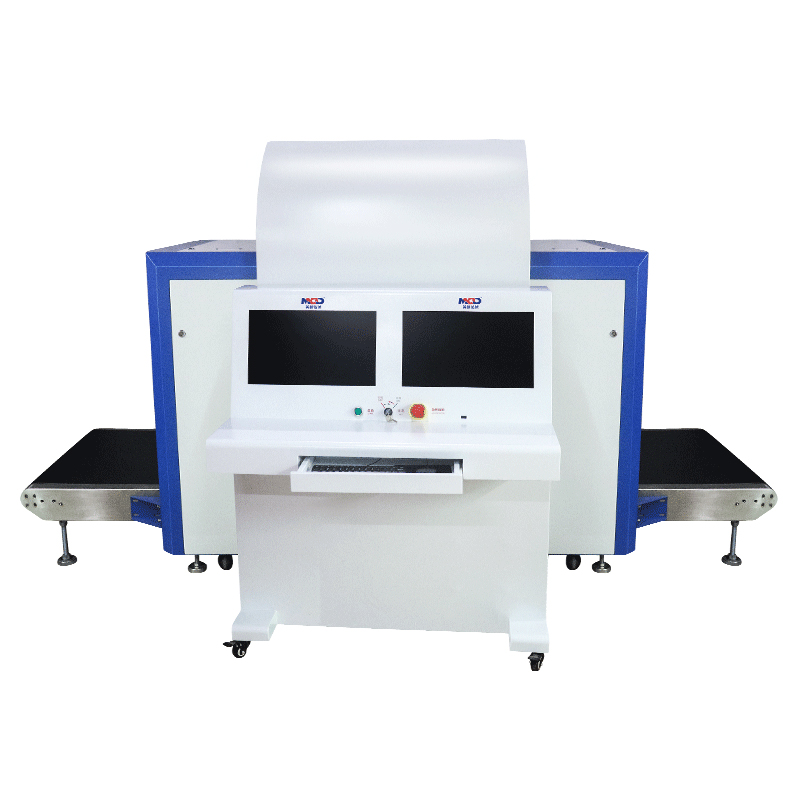

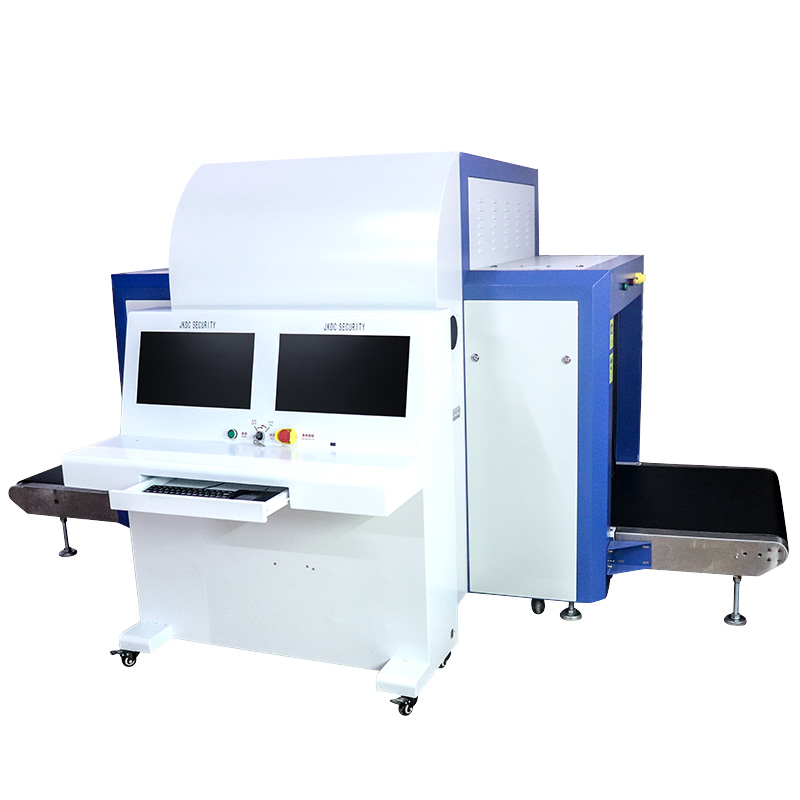

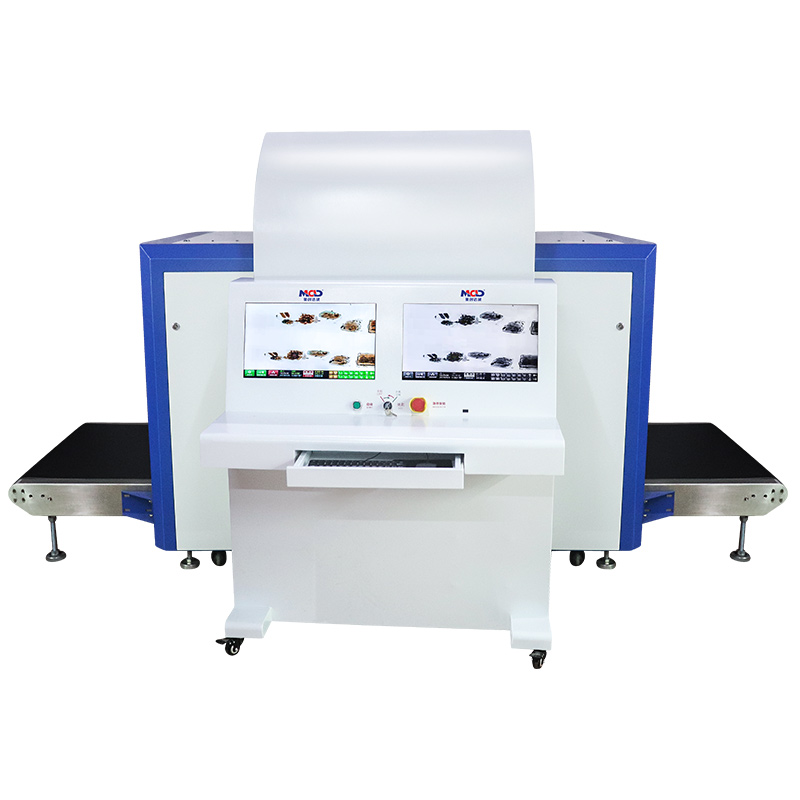

Type: X-Ray Baggage Scanner
Brand: MCD
SKU: MCD-10080D
Quantity:
Standard Features

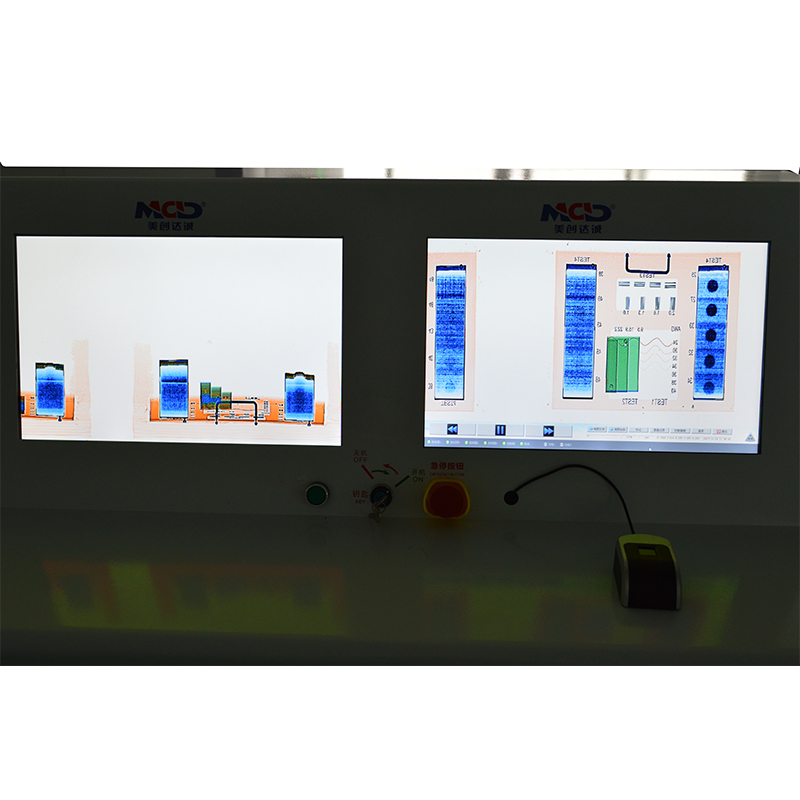

Twin-channel Detection System
Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.
High Definition Image
Adopt new generation of HD schema design, providing clear images and stable performance.
Dynamic Processing
Real-time display, optimization functions like edge enhancement, amplification and so on.
Image Management
Built-in image management system, which enables users to browse saved images quickly.
Intelligent Alarm
User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.
Green Lead Curtain
Wear-resistant, pollution-free, long service life.
Self-Diagnose
Automatically prompt when failure is detected, and be convenient to maintain.
Shutdown With One Key
When you try to turn off the equipment, just rotate the key, which is convenient and simple.
Network Interface
Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.
Intelligent Roller
Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.
Threat Image Protection
TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.
Usage/Application | Transportation System, airport, railway systems, military base, government facilities, commercial facilities etc. | —— | Image System | |
Generator | 2 sets of generators and detection systems,Dual View | X-ray Sensor | L-shaped photo diode array (mono energetic), 16bit depth | |
General Parametersc | Monitor | High resolution color, LCD compatible, 19inch(can be customize) | ||
Feature | Big tunnel design, High-precision X-ray detector,OTP Operator Training Program | Image Processing | Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind. | |
Model Number | MCD-100800D | Image Grayness Level | 4096 | |

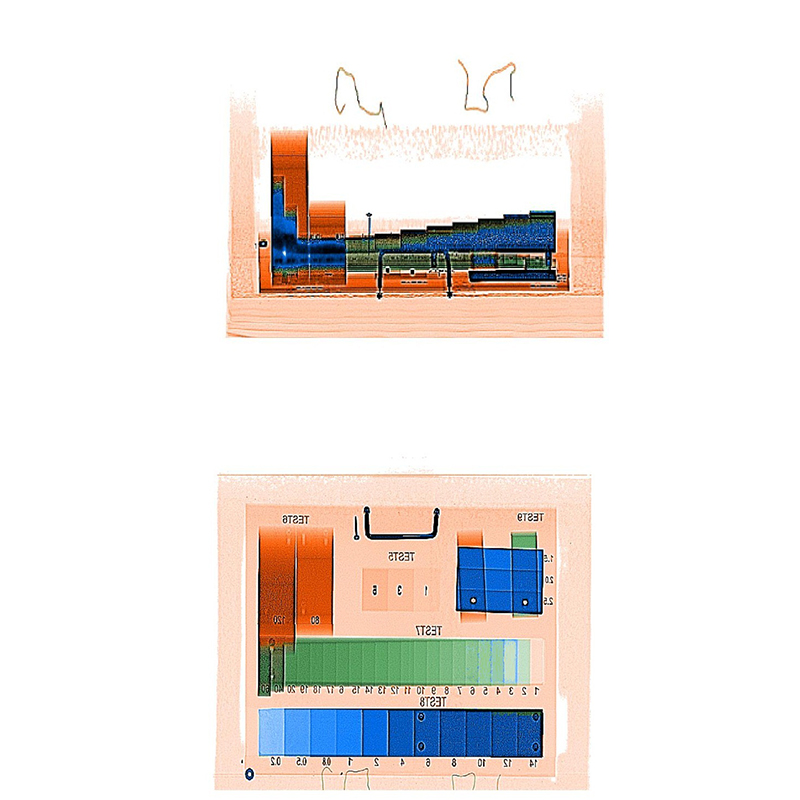

Tunnel Size Conveyor | 1000 mm (Width) *800 mm (Height)) | Objects distinguish | Organic in orange Inornanic in blue Mixture in green | |
Conveyor Speed | 0.22/ sec | High-energy/low energy | Switch from high energy to low energy | |
Conveyor Max Load | 250 kg (Evenly distributed) | Image Maximum Resolution | 1440*900 pixels (can be customize) | |
Conveyor height | 350 mm or 630 mm | Image Processing | 24bit real time processing in real time | |
Wire Resolution | 32AWGΦ0.202mm solid copper wire | Image Storage | 500,000 images in real time | |
Pass resolution | Typical AWG43 | Other Functions | Fault diagnosis, system time setting, detection blind dots delete, X-ray source setting (analoge or digital ), alarm setting, image setting, software register, user management, date setting (machine working time , X-ray source working time, baggage counter etc.) | |
Spatial Resolution | Level: dia 1.0 mm Vertical: dia 1.0 mm | Network interface | YES | |
Penetration Through Steel Plate | 43 mm | Energy saving function | YES | |
Dose per Inspection | Less than 2.0 uGy/h | Installation Data | ||
Film Safety | Guaranteed ISO 1600 Film | |||
X-ray Leakage | Less than 1 uGy/h at 5cm from frame house | Operating Environment / Humidity | 0 to 45 Degree C / 20 - 95% (non-condensing) | |
*With continued R&D, MCD reservers the right to amend specifications without notice. | Storage Temperature / Humidity | -20 to 60 Degree C / 20 ~ 95% (non-condensing) | ||
X-ray Generator | Operating Power | 220VAC (± 10%) 50 ± 3Hz | ||
Generator Direction | Upward and sideward | Power Consumption | 1.0 KW (max), 0.3KW (working) | |
Generator Angle | 80 degrees downward | System Noise | ＜55 dB | |
Anode Voltage | 140 KV | |||
Anode Power | 0.3 mA | Optional Features | ||
Sensor quantity | 2 Generator | camera video system,TIP Threat Image Projection,X-Auto sight(Threat self identification assistant function) etc.
| ||
Cooling | Oil cooling 100% | |||
Package Size | ||||
Unit Net Weight | 730 Kgs | |||
Wooden size | 261*140*190 cm (X-ray baggage scanner machine body) 133*127*75 cm (operation desk) | |||
