– High Definition Image
– Dynamic Processing
– Intelligent Alarm
– Self-Diagnose
– Shutdown With One Key
– Switchable 4/7 Color Imaging
– Top-ranking Multi-energy Imaging
– Meticulous Material Discrimination
– Bidirectional Full Tunnel Scanning
– Explosive and Narcotics Detection

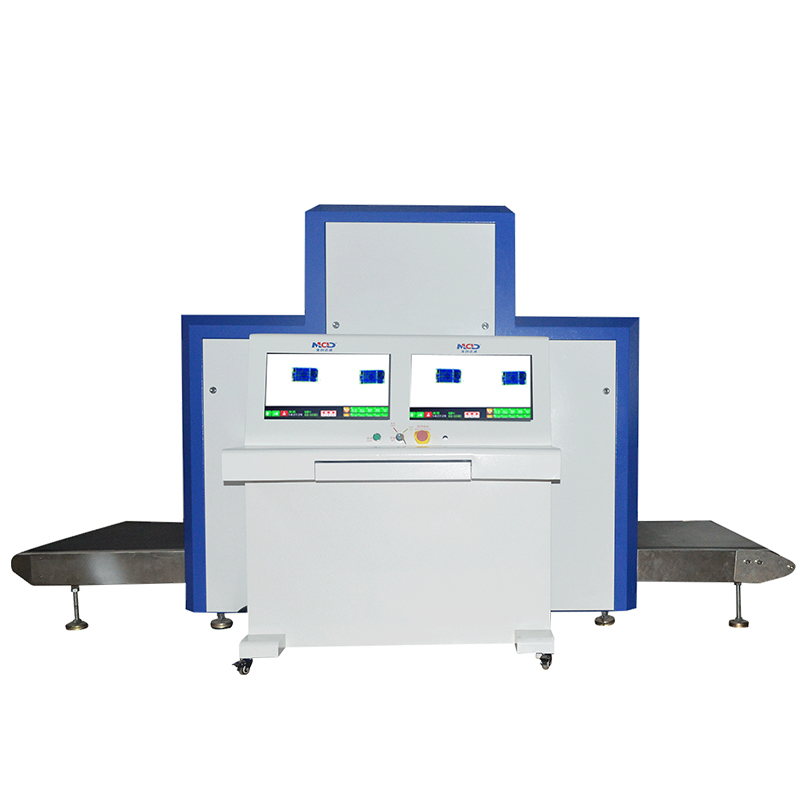

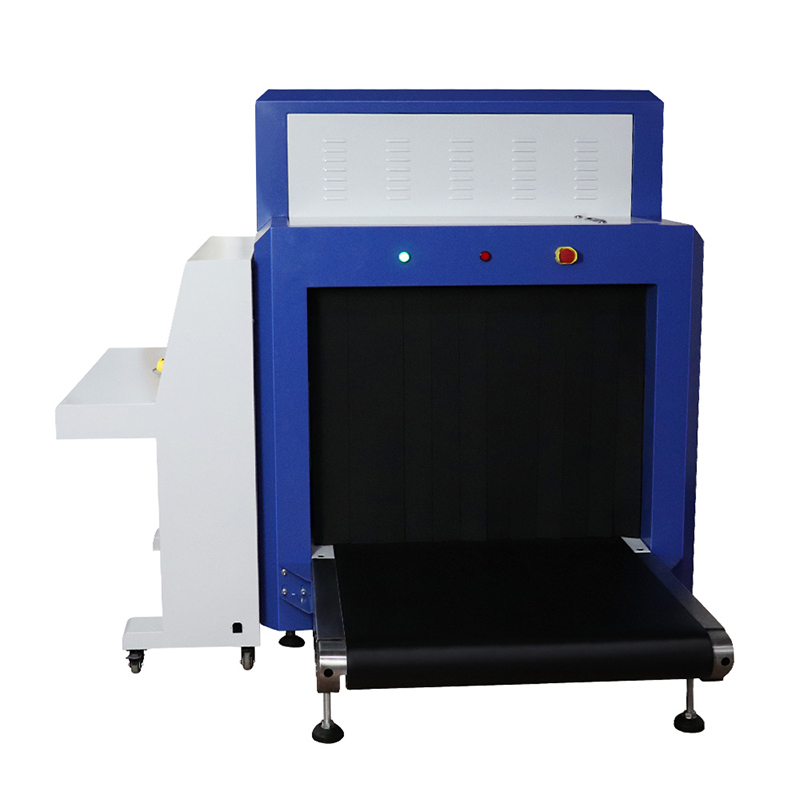

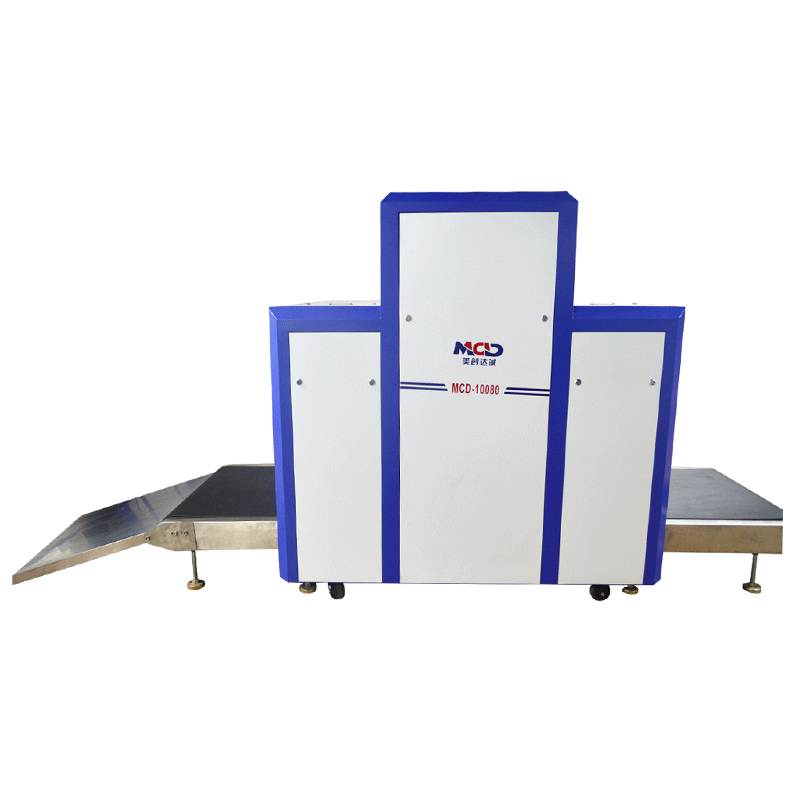

Type: X-Ray Baggage Scanner
Brand: MCD
SKU: MCD-10080C
Quantity:
Standard Features
Twin-channel Detection System
Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.
High Definition Image
Adopt new generation of HD schema design, providing clear images and stable performance.
Dynamic Processing
Real-time display, optimization functions like edge enhancement, amplification and so on.
Image Management
Built-in image management system, which enables users to browse saved images quickly.
Intelligent Alarm
User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.
Green Lead Curtain
Wear-resistant, pollution-free, long service life.
Self-Diagnose
Automatically prompt when failure is detected, and be convenient to maintain.
Shutdown With One Key
When you try to turn off the equipment, just rotate the key, which is convenient and simple.
Network Interface
Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.
Intelligent Roller
Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.
Threat Image Protection
TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.
Usage/Application | Hotel, bank, Mail rooms, entrance halls, prisons , schools and Government Office etc. | —— | Image System | |
Certification | CE and ISO | X-ray Sensor | L-shaped photo diode array (multi-energy ), 16bit depth | |
General Parametersc | Monitor | High resolution color, LCD compatible, 19inch(can be customize) | ||
Model Number | MCD-10080C | Image Processing | Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind. | |
Tunnel Size Conveyor | 1000 mm (Width) * 800 mm (Height)) | Image Grayness Level | 4096 | |
Conveyor Speed | 0.22/ sec | Image Maximum Resolution | 1440*900 pixels (can be customize) | |
Conveyor Max Load | 250 kg (Evenly distributed) | Image Processing | 24bit real time processing in real time | |
Conveyor height | 350 mm | Image Storage | 500,000 images in real time | |
Wire Resolution | Typical 40 AWG | Zone & Zoom | 1-9 image zones, enlargement of 2, 4, 8, 16 times, fully screen continuous observation. | |
Pass resolution | Typical AWG34 | High-energy/low energy | switch from high energy to low energy | |

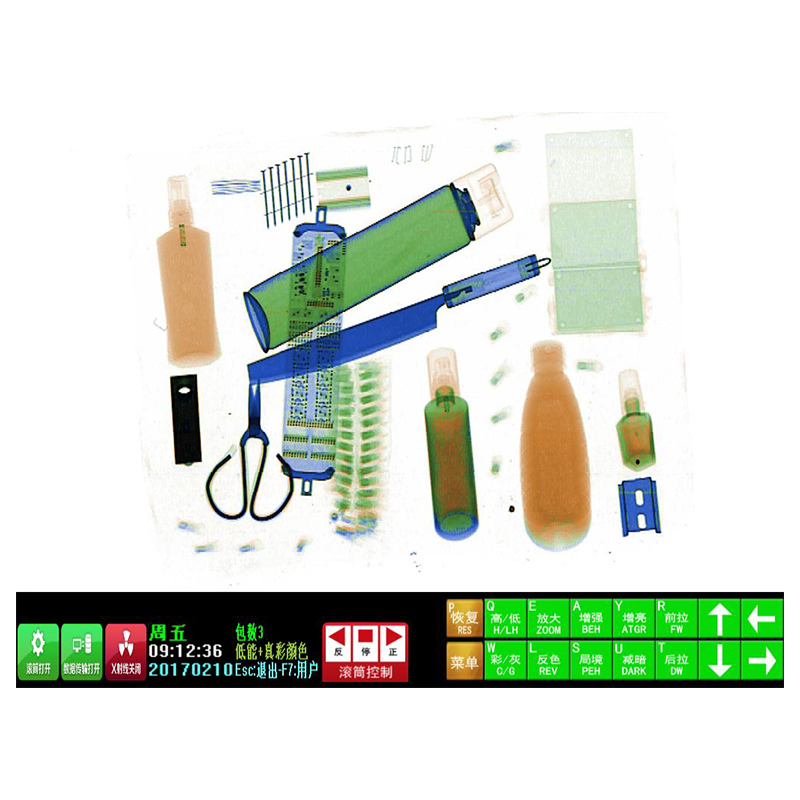

Spatial Resolution | Level: dia 1.0 mm Vertical: dia 1.0 mm | Objects distinguish | Organic in orange
Inornanic in blue
Mixture in green | |
Generator quantity | 2 generator | Other Functions | Fault diagnosis, system time setting, detection blind dots delete, X-ray source setting (analoge or digital ), alarm setting, image setting, software register, user management, date setting (machine working time , X-ray source working time, baggage counter etc.) | |
Penetration Through Steel Plate | 34 mm | Network interface | YES | |
Dose per Inspection | Less than 1.5 uGy/h | Energy saving function | YES | |
Film Safety | Guaranteed ISO 1600 Film | Installation Data | ||
X-ray Leakage | Less than 1 uGy/h at 5cm from frame house | |||
*With continued R&D, MCD reservers the right to amend specifications without notice. | Operating Environment / Humidity | 0 to 45 Degree C / 20 - 95% (non-condensing) | ||
X-ray Generator | Storage Temperature / Humidity | -20 to 60 Degree C / 20 ~ 95% (non-condensing) | ||
Generator Direction | Up | Operating Power | 220VAC (± 10%) 50 ± 3Hz | |
Generator Angle | 80 degrees downward | Power Consumption | 1.0 KW (max), 0.3KW (working) | |
Anode Voltage | 140 KV | System Noise | ＜55 dB | |
Anode Power | 0.3 mA | |||
Energy | Multi-energy | Package Size | ||
Cooling | Oil cooling 100% | Unit Net Weight | 730 Kgs | |
Unit Gross Weight | 920 KG | |||
Wooden size | 261*140*190 cm (X-ray baggage scanner machine body) 133*127*75 cm (operation desk) | |||
