– High Definition Image
– Dynamic Processing
– Intelligent Alarm
– Self-Diagnose
– Shutdown With One Key

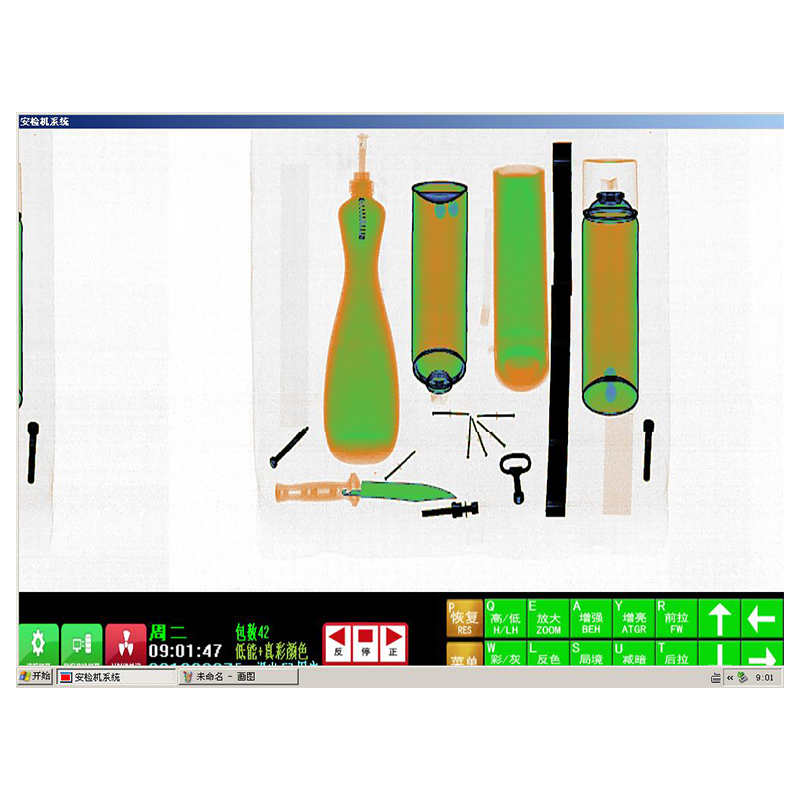

– Switchable 4/7 Color Imaging
– Top-ranking Multi-energy Imaging
– Meticulous Material Discrimination
– Bidirectional Full Tunnel Scanning
– Explosive and Narcotics Detection

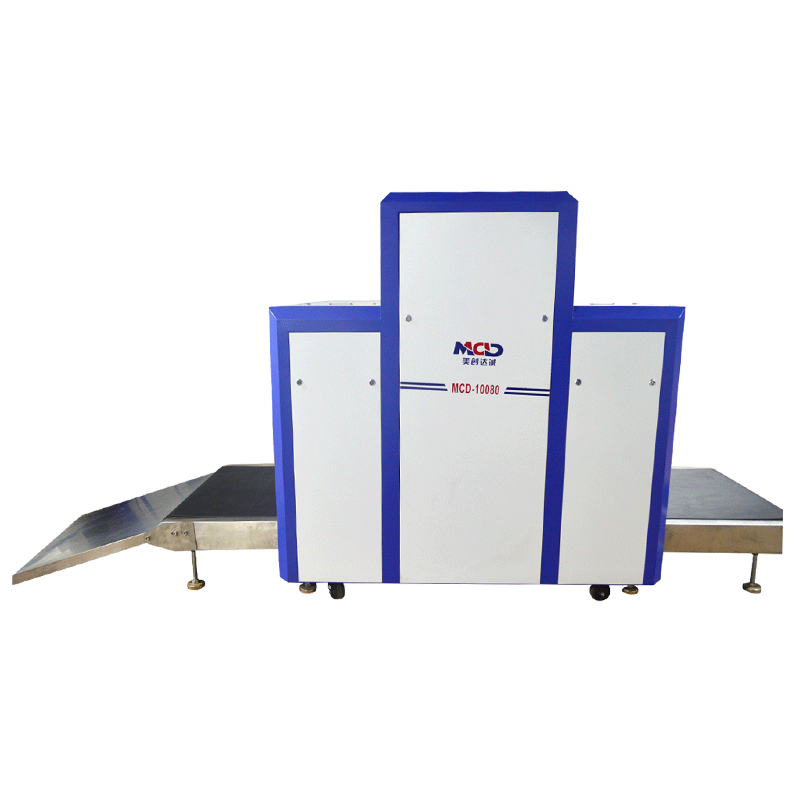

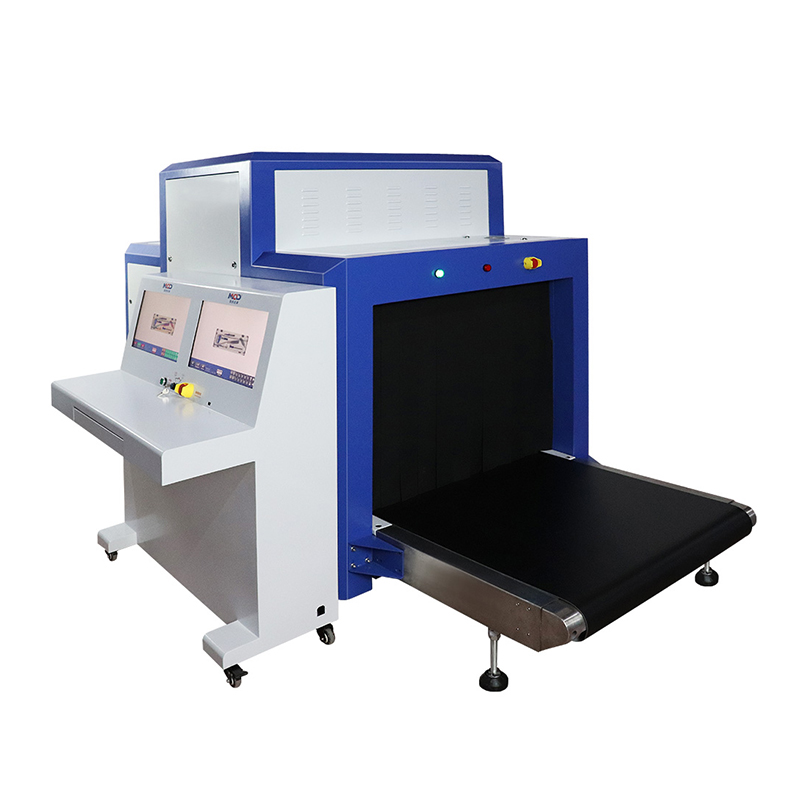

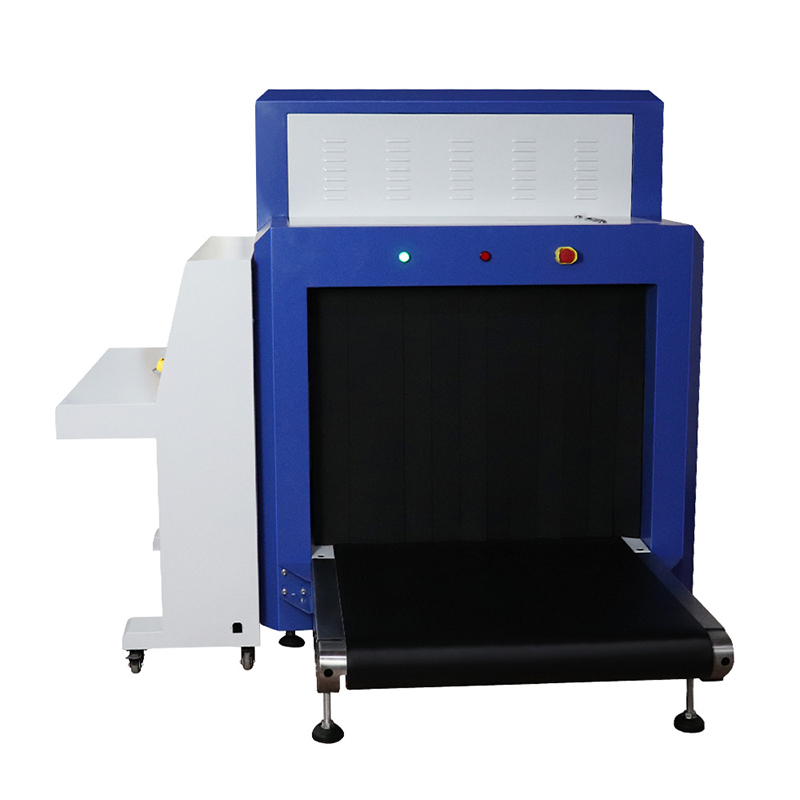

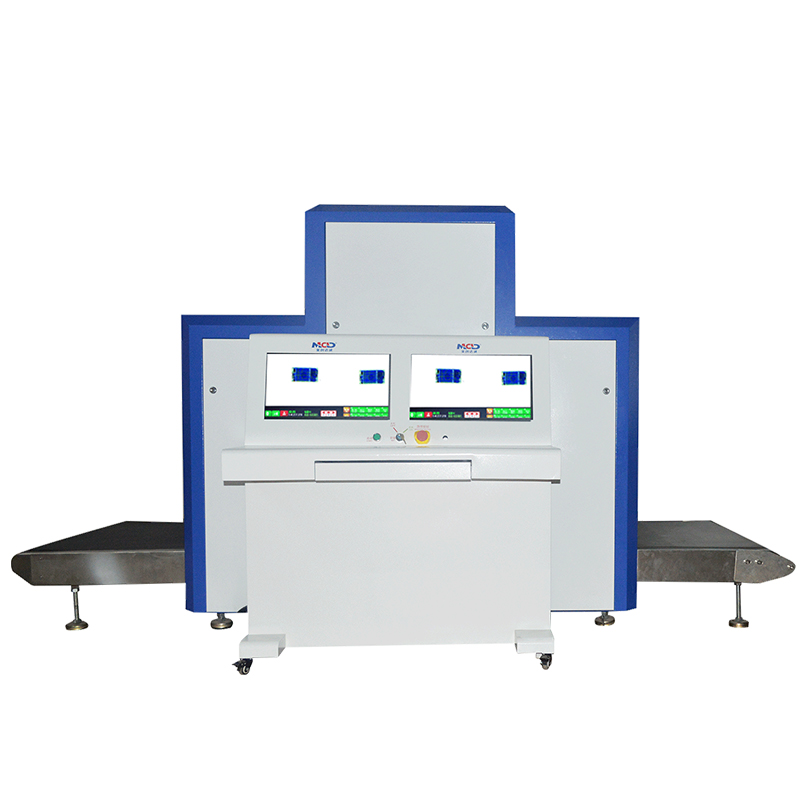

Type: MCD-10080A
Brand: MCD
SKU:
Quantity:
Standard Features
Twin-channel Detection System
Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.
High Definition Image
Adopt new generation of HD schema design, providing clear images and stable performance.
Dynamic Processing
Real-time display, optimization functions like edge enhancement, amplification and so on.
Image Management
Built-in image management system, which enables users to browse saved images quickly.
Intelligent Alarm
User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.
Green Lead Curtain
Wear-resistant, pollution-free, long service life.
Self-Diagnose
Automatically prompt when failure is detected, and be convenient to maintain.
Shutdown With One Key
When you try to turn off the equipment, just rotate the key, which is convenient and simple.
Network Interface
Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.
Intelligent Roller
Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.
Threat Image Protection
TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.
Usage/Application | logistics company, airport x-ray security checking for luggage, and hotel baggage security inspection in the lobby,Olympics, Expo,summit ,metro and railways etc. | —— | Image System | |
Assist to | detect drug and explosive powder | X-ray Sensor | L-shaped photo diode array (mono energetic), 16bit depth | |
General Parameters | Monitor | High resolution color, LCD compatible, 19inch | ||
Model number | MCD-10080 | Image Processing | Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind. | |
Tunnel Size Conveyor | 1000 mm (Width) * 800 mm (Height)) | Image Grayness Level | 4096 | |
Conveyor Speed | 0.22/ sec | Image Maximum Resolution | 1024*768 pixels | |
Conveyor height | 300 mm | Image Processing | 24bit real time processing in real time | |
Conveyor Max Load | 250 kg (Evenly distributed) | Image Storage | 200,000 images in real time | |
Single inspection dosage | < 1.0µsv | Zone & Zoom | 1-9 image zones, enlargement of 2, 4, 8, 16 times, fully screen continuous observation. | |
Wire Resolution | 40AWG | |||
Spatial Resolution | Level: dia 1.0 mm Vertical: dia 1.0 mm | Other function | Date & Time Display, Luggage Counting, System Working Timing, X-Ray Emission,Working Status Display, User Management, Fault Self-diagnosis and Maintenance Functions, Alarm Function, Urgent Stop, Limits of Authority Management for Operator,Self-check Power-On, Image Magnification Display, Save and Retrieval, Image Navigation,Bi-directional Scanning, Image Recognition Training, Network Interface,Browse, One Key to Shutdown, Save As, Plication. | |
Penetration Through Steel Plate | 14 mm | Installation Data | ||
Maximum leakage radiation | Less than 1.0 uGy/h | Operating Environment / Humidity | 0 to 45 Degree C / 20 - 95% (non-condensing) | |
Film Safety | Guaranteed ISO 1600 Film | Storage Temperature / Humidity | -20 to 60 Degree C / 20 ~ 95% (non-condensing) | |
X-ray Leakage | Less than 1 uGy/h at 5cm from frame house | Operating Power | 220VAC (± 10%) 50 ± 3Hz | |
*With continued R&D, MCD reservers the right to amend specifications without notice. | Power Consumption | 1.0 KW (max), 0.3KW (working) | ||
This model designed for railway, airport, custom, port and other critical areas | System Noise | ＜55 dB | ||
X-ray Generator | ||||
Generator Direction | From top to bottom | Package Size | ||
Generator Angle | 80 degrees downward | Unit Net Weight | 900 Kgs | |
Anode Voltage | 80KV | Unit Gross Weight | 700 Kgs | |
Anode Power | 0.6 mA | Wooden size | 261*140*190 cm (10080 X ray machine) 133*127*75 cm (dual screening operation desk) | |
X-ray Sensor | single generator | |||
Cooling/Duty Cycle | 0%-90% (non-condensing) | |||
