– High Definition Image
– Dynamic Processing
– Intelligent Alarm
– Self-Diagnose
– Shutdown With One Key
– Switchable 4/7 Color Imaging
– Top-ranking Multi-energy Imaging
– Meticulous Material Discrimination
– Bidirectional Full Tunnel Scanning
– Explosive and Narcotics Detection

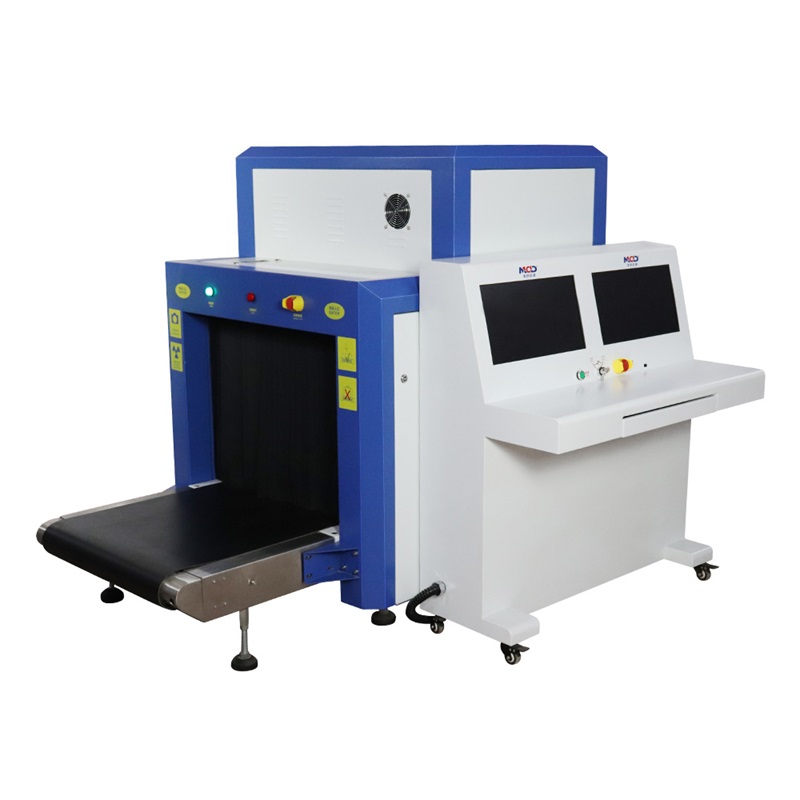

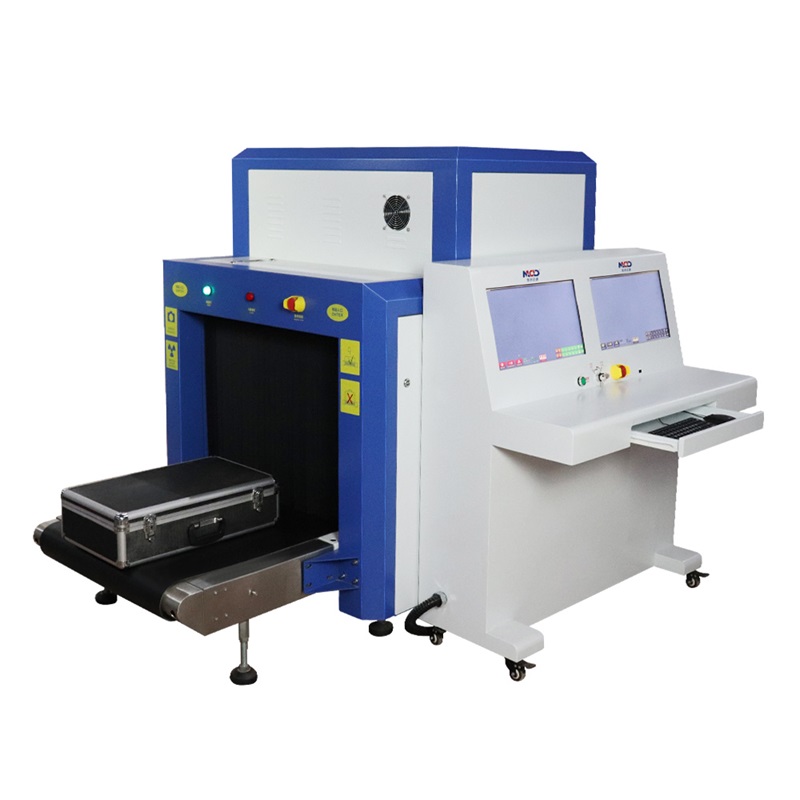

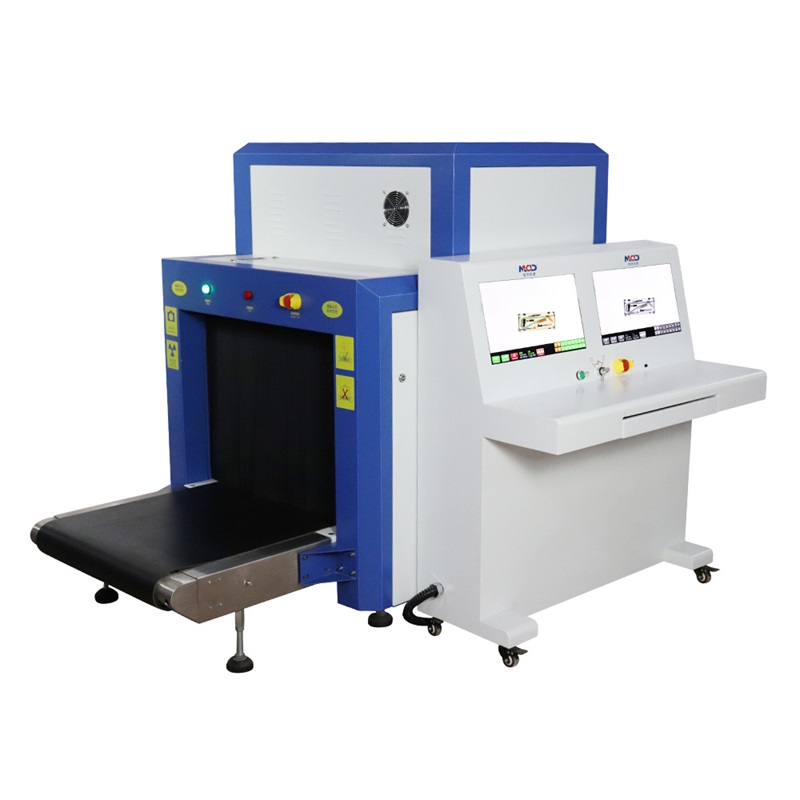

Type: X-Ray Baggage Scanner
Brand: MCD
SKU: MCD-8065C
Quantity:
Standard Features
Twin-channel Detection System
Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.
High Definition Image
Adopt new generation of HD schema design, providing clear images and stable performance.
Dynamic Processing
Real-time display, optimization functions like edge enhancement, amplification and so on.
Image Management
Built-in image management system, which enables users to browse saved images quickly.
Intelligent Alarm
User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.
Green Lead Curtain
Wear-resistant, pollution-free, long service life.
Self-Diagnose
Automatically prompt when failure is detected, and be convenient to maintain.
Shutdown With One Key
When you try to turn off the equipment, just rotate the key, which is convenient and simple.
Network Interface
Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.
Intelligent Roller
Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.
Threat Image Protection
TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.
Usage/Application | shopping centers, hotel and congress centers, public institutions and organizations, plaza and business centers, hospitals and educational institutions. | —— | Image System | |
XRay device provides detection | Cutting and driller objects made of metal, especially guns, knives, liquid and solid explosives, by scanning inside of all cargos such as bags, luggage, bags and so on. | X-ray Sensor | L-shaped photo diode array (multi-energetic), 16bit depth | |
Monitor | High resolution color, LCD compatible, 19inch(can be customize) | |||
General Parametersc | Image Processing | Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind. | ||
Model Number | MCD-8065C | Image Grayness Level | 4096 | |
Tunnel Size Conveyor | 800 mm (Width) * 650 mm (Height)) | Image Maximum Resolution | 1440*900 pixels (can be customize) | |
Conveyor Speed | 0.22/ sec | Image Processing | 24bit real time processing in real time | |
Conveyor Max Load | 200 kg (Evenly distributed) | Image Storage | 500,000 images in real time | |
Conveyor height | 350 mm or 630 mm | Zone & Zoom | 1-9 image zones, enlargement of 2, 4, 8, 16 times, fully screen continuous observation. | |

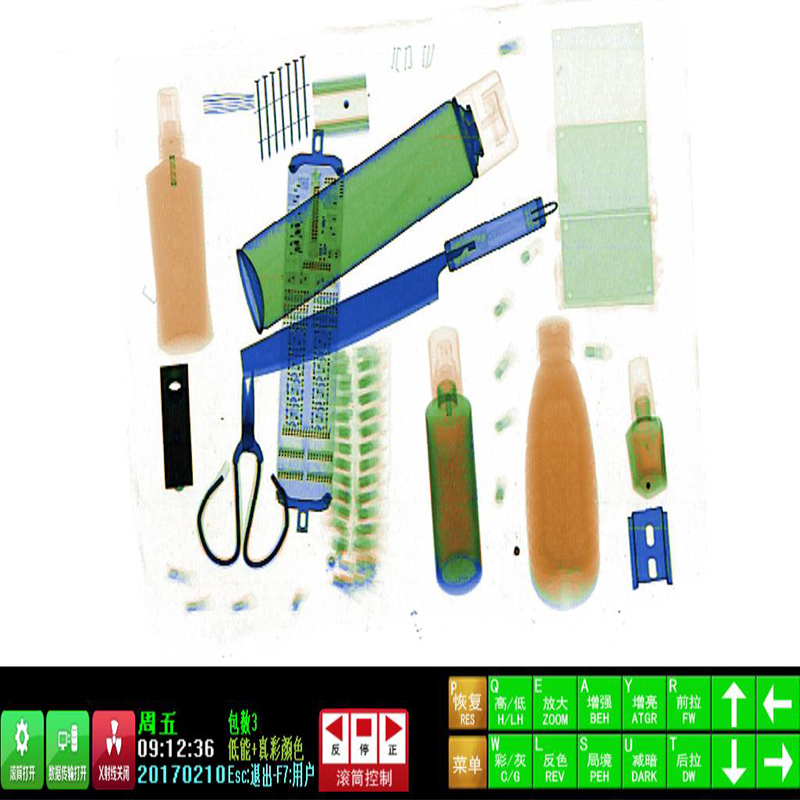

Wire Resolution | Typical 40 AWG | Objects distinguish | Organic in orange
Inornanic in blue
Mixture in green | |
Pass resolution | Typical AWG34 | Other Functions | Shutdown With One Key, Fault diagnosis, system time setting, detection blind dots delete, X-ray source setting (analoge or digital ), alarm setting, image setting, software register, user management, date setting (machine working time , X-ray source working time, baggage counter etc.) | |
Spatial Resolution | Level: dia 1.0 mm Vertical: dia 1.0 mm | Network Interface | Can be connected to a local area network, multiple terminals can check baggage at the same time | |
Penetration Through Steel Plate | 34 mm | |||
Dose per Inspection | Less than 1.5 uGy/h | Installation Data | ||
Film Safety | Guaranteed ISO 1600 Film | |||
X-ray Leakage | Less than 1 uGy/h at 5cm from frame house | Operating Environment / Humidity | 0 to 45 Degree C / 20 - 95% (non-condensing) | |
*With continued R&D, MCD reservers the right to amend specifications without notice. | Storage Temperature / Humidity | -20 to 60 Degree C / 20 ~ 95% (non-condensing) | ||
X-ray Generator | Operating Power | 220VAC (± 10%) 50 ± 3Hz | ||
Generator Direction | From top to bottom | Power Consumption | 1.0 KW (max), 0.3KW (working) | |
Generator Angle | 80 degrees downward | System Noise | ＜55 dB | |
Anode Voltage | 140 KV | |||
Anode Power | 0.3 mA | Package Size | ||
Sensor quantity | Multi-energy | Unit Net Weight | 550 Kgs | |
Cooling | Oil cooling 100% | Unit Gross Weight | 650 KG | |
Wooden size | 200*120*175cm (X-ray baggage scanner machine body) 130*80*75 cm (operation desk) | |||
Total CBM | 5 CBM | |||
