Product Highlight:
Multi-energy image processing system
Single-energy penetration system
Energy saving design
Easy to use
Shutdown With One Key

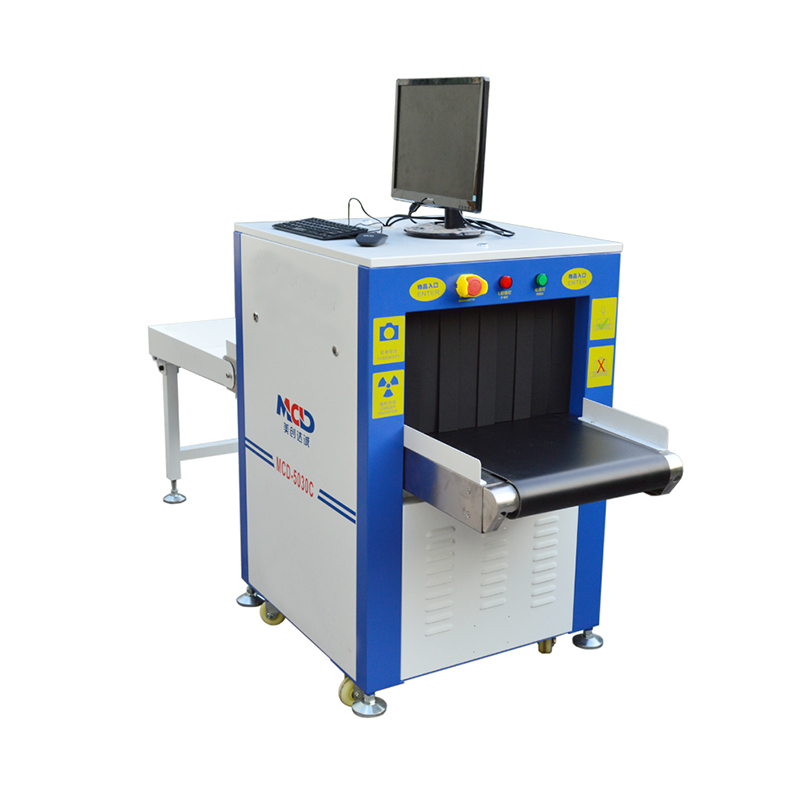

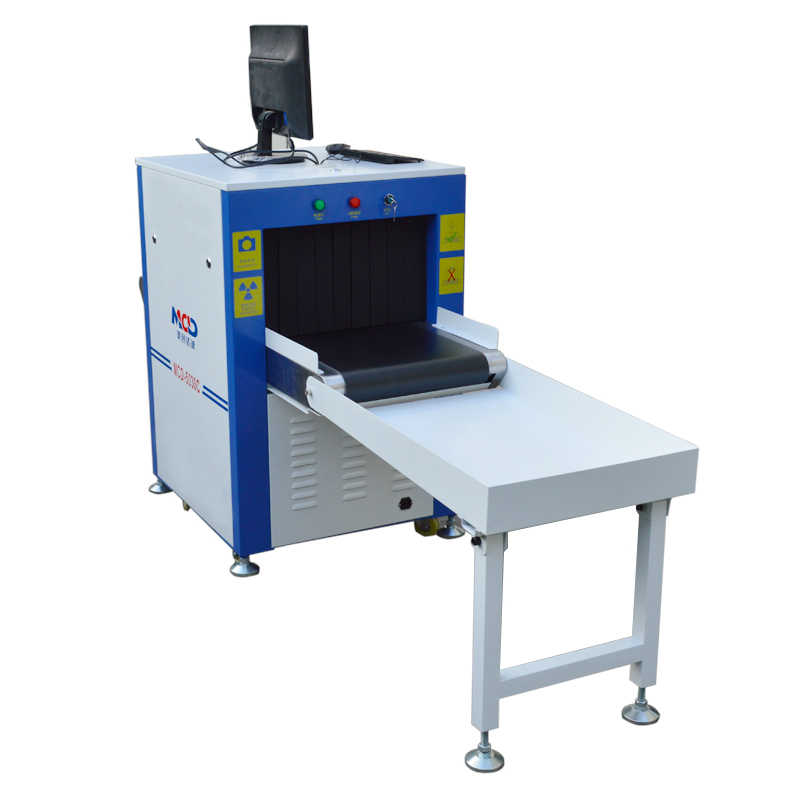

Type: X-Ray Baggage Scanner
Brand: MCD
SKU: MCD-5030C
Quantity:
Standard Features
Twin-channel Detection System
Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.
High Definition Image
Adopt new generation of HD schema design, providing clear images and stable performance.
Dynamic Processing
Real-time display, optimization functions like edge enhancement, amplification and so on.
Image Management
Built-in image management system, which enables users to browse saved images quickly.
Intelligent Alarm
User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.

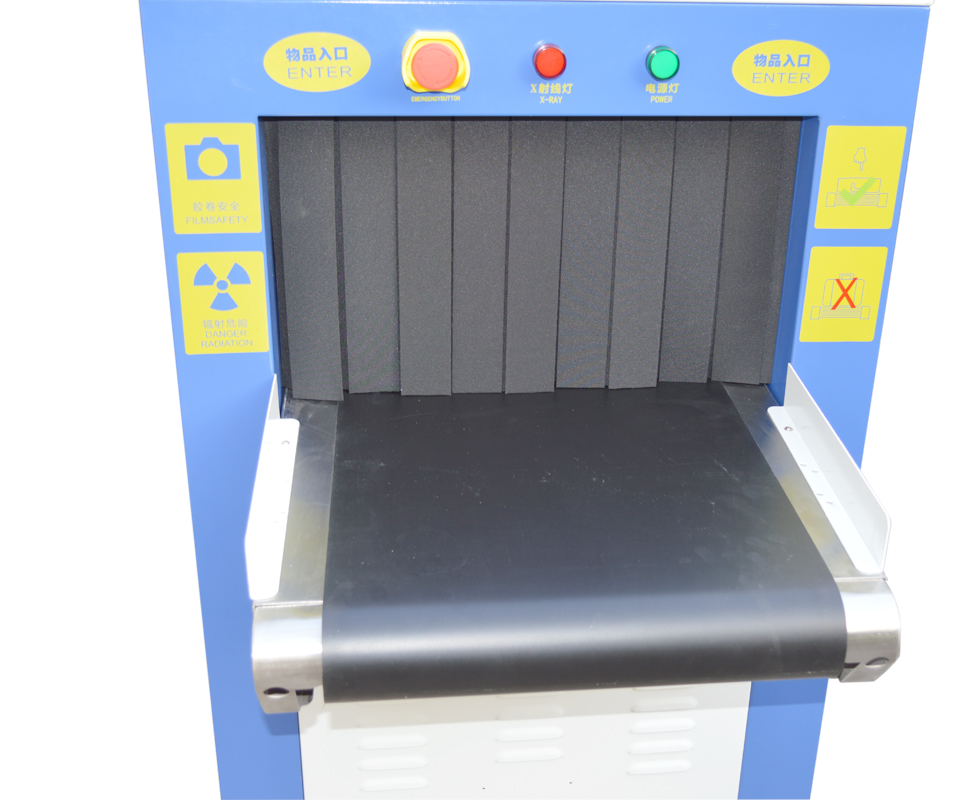

Green Lead Curtain
Wear-resistant, pollution-free, long service life.
Self-Diagnose
Automatically prompt when failure is detected, and be convenient to maintain.
Shutdown With One Key
When you try to turn off the equipment, just rotate the key, which is convenient and simple.
Network Interface
Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.
Intelligent Roller
Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.
Threat Image Protection
TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.
Usage/Application | Hotel, bank, Mail rooms, entrance halls, prisons , schools and Government Office etc. | —— | X-ray Generator | |
Certification | CE and ISO | Generator Direction | From top to bottom | |
General Parametersc | Generator Angle | 80 degrees downward | ||
Tunnel Size Conveyor | 500 mm (Width) * 300 mm (Height)) | Anode Voltage | 140KV | |
Product Dimension | 1670*820*1201 mm | Anode Power | 0.3 mA | |
Conveyor Speed | 0.22/ sec | Sensor quantity | single generator | |
Conveyor Max Load | 100 kg (Evenly distributed) | Cooling | Oil cooling 100% | |
Pass Rate | 720 - 1500 piece/hour | |||
Wire Resolution | Typical 40 AWG | Image System | ||
Pass resolution | Typical AWG34 | X-ray Sensor | L-shaped photo diode array (multi-energetic), 16bit depth | |
Spatial Resolution | Level: dia 1.0 mm Vertical: dia 1.0 mm | Monitor | High resolution color, LCD compatible, 19inch | |
Penetration Through Steel Plate | 34 mm | Image Processing | Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind. | |
Dose per Inspection | Less than 1.5 uGy/h | Image Grayness Level | 4096 | |
Film Safety | Guaranteed ISO 1600 Film | Image Maximum Resolution | 1440*900 pixels | |
X-ray Leakage | Less than 1 uGy/h at 5cm from frame house | Image Processing | 24bit real time processing in real time | |
*With continued R&D, MCD reservers the right to amend specifications without notice. | Image Storage | 500,000 images in real time | ||
Zone & Zoom | 1-9 image zones, enlargement of 2, 4, 8, 16 times, fully screen continuous observation. | |||

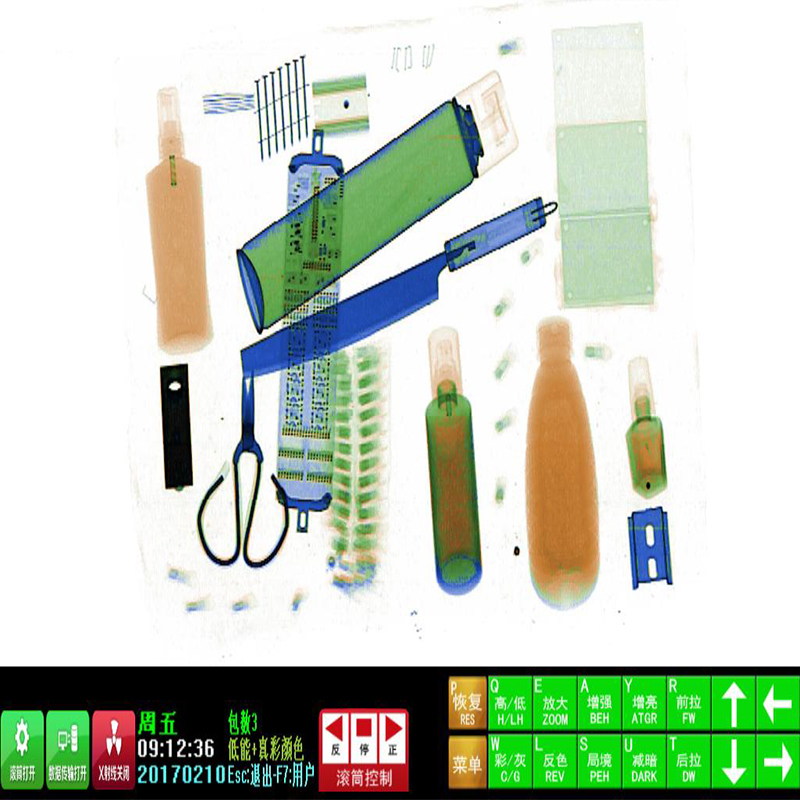

| Installation Data | Objects distinguish | Organic in orange/Inornanic in blue/Mixture in green | ||
Operating Environment / Humidity | 0 to 45 Degree C / 20 - 95% (non-condensing) | Other Functions | Fault diagnosis, system time setting, detection blind dots delete, X-ray source setting (analoge or digital ), alarm setting, image setting, software register, user management, date setting (machine working time , X-ray source working time, baggage counter etc.) | |
Storage Temperature / Humidity | -20 to 60 Degree C / 20 ~ 95% (non-condensing) | Network interface | YES | |
Operating Power | 220VAC (± 10%) 50 ± 3Hz | |||
Power Consumption | 1.0 KW (max), 0.3KW (working) | Package Size | ||
System Noise | ＜55 dB | Unit Net Weight | 190 Kgs | |
Unit Gross Weight | 240 KG | |||
Wooden size | 162*85*132 cm | |||
CBM | 1.82 CBM | |||
