MCD-6650A X-Ray Baggage Scanner_X Ray Baggage Scanner

Product Detaills

Standard Features

Twin-channel Detection System

Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.

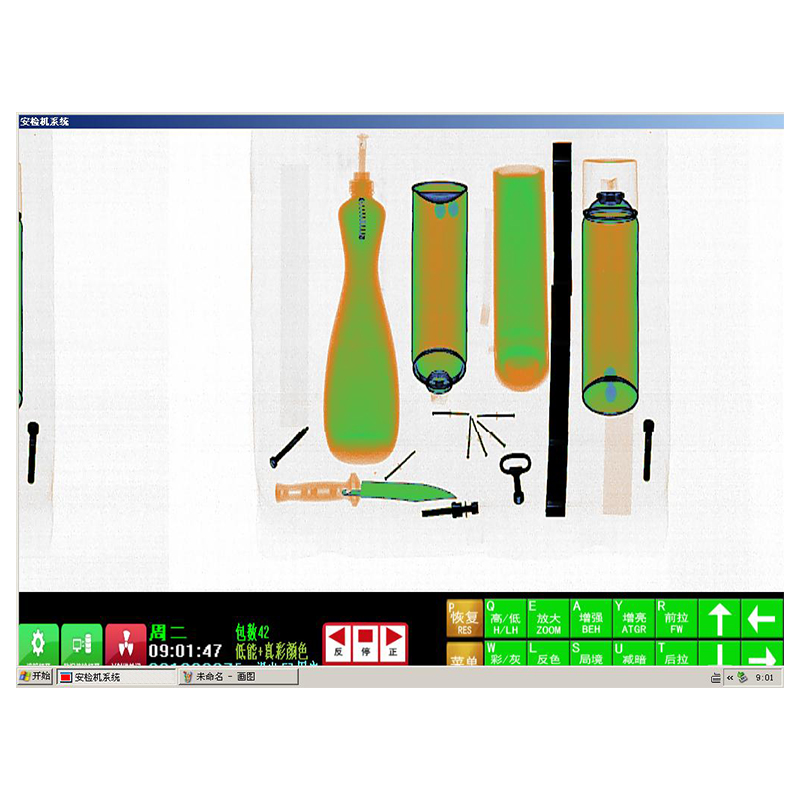

High Definition Image

Adopt new generation of HD schema design, providing clear images and stable performance.

Dynamic Processing

Real-time display, optimization functions like edge enhancement, amplification and so on.

Image Management

Built-in image management system, which enables users to browse saved images quickly.

Intelligent Alarm

User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.

Green Lead Curtain

Wear-resistant, pollution-free, long service life.

Self-Diagnose

Automatically prompt when failure is detected, and be convenient to maintain.

Shutdown With One Key

When you try to turn off the equipment, just rotate the key, which is convenient and simple.

Network Interface

Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.

Intelligent Roller

Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.

Threat Image Protection

TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.

Usage/Application	hotel, shopping mall, office building, metro station etc.	——	Image System
Certification	CE&ISO		X-ray Sensor	L-shaped photo diode array (mono energetic), 16bit depth
General Parameters			Monitor	High resolution color, LCD compatible, 19inch
Tunnel Size Conveyor	650 mm (Width) * 500 mm (Height))		Image Processing	Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind.
Conveyor Speed	0.22/ sec		Image Grayness Level	4096
Conveyor Max Load	150 kg (Evenly distributed)		Image Maximum Resolution	1024*768 pixels
Conveyor Height	630 mm		Image Processing	24bit real time processing in real time
Single inspection dosage	< 1.0µsv		Image Storage	200,000 images in real time
Pass Rate	720 - 1500 pieces / hour		Zone & Zoom	1-9 image zones, enlargement of 2, 4, 8, 16 times, fully screen continuous observation.
Wire Resolution	40AWG
Spatial Resolution	Level: dia 1.0 mm Vertical: dia 1.3 mm		Installation Data
Penetration Through Steel Plate	14 mm		Operating Environment / Humidity	0 to 45 Degree C / 20 - 95% (non-condensing)
Maximum leakage radiation	Less than 1.0 uGy/h		Storage Temperature / Humidity	-20 to 60 Degree C / 20 ~ 95% (non-condensing)
Film Safety	Guaranteed ISO 1600 Film		Operating Power	220VAC (± 10%) 50 ± 3Hz
X-ray Leakage	Less than 1 uGy/h at 5cm from frame house		Power Consumption	1.0 KW (max), 0.3KW (working)
*With continued R&D, MCD reservers the right to amend specifications without notice.			System Noise	＜55 dB
X-ray Generator
Generator Direction	From top to bottom		Package Size
Generator Angle	80 degrees downward		Unit Net Weight	300 Kgs
Anode Voltage	80KV		Unit Gross Weight	350 KG
Anode Power	0.6 mA		Wooden size	215108150 cm
X-ray Sensor	single generator		CBM	3.5 CBM
Cooling/Duty Cycle	0%-90% (non-condensing)
