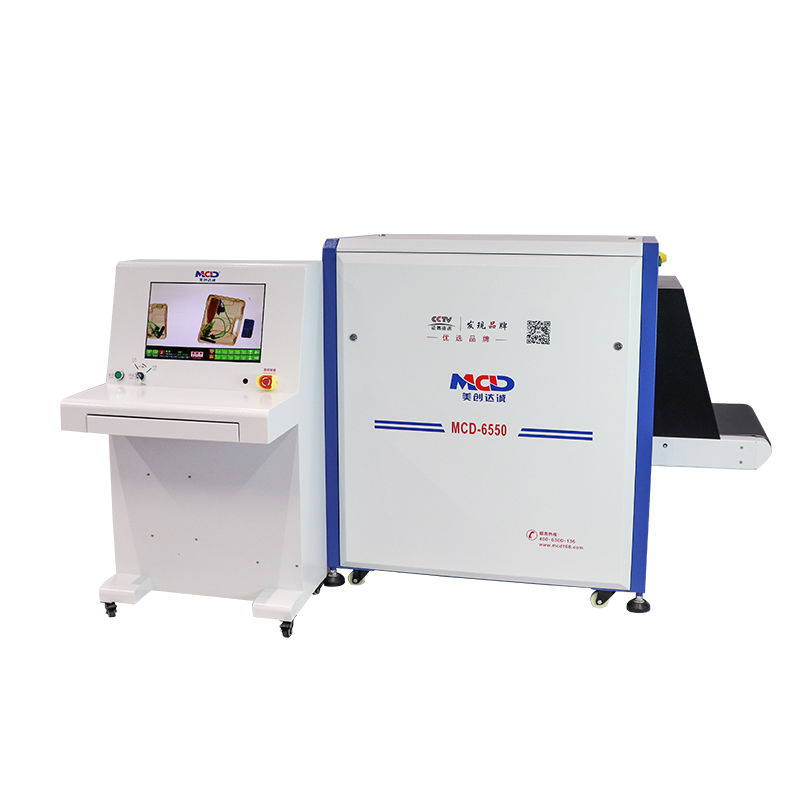

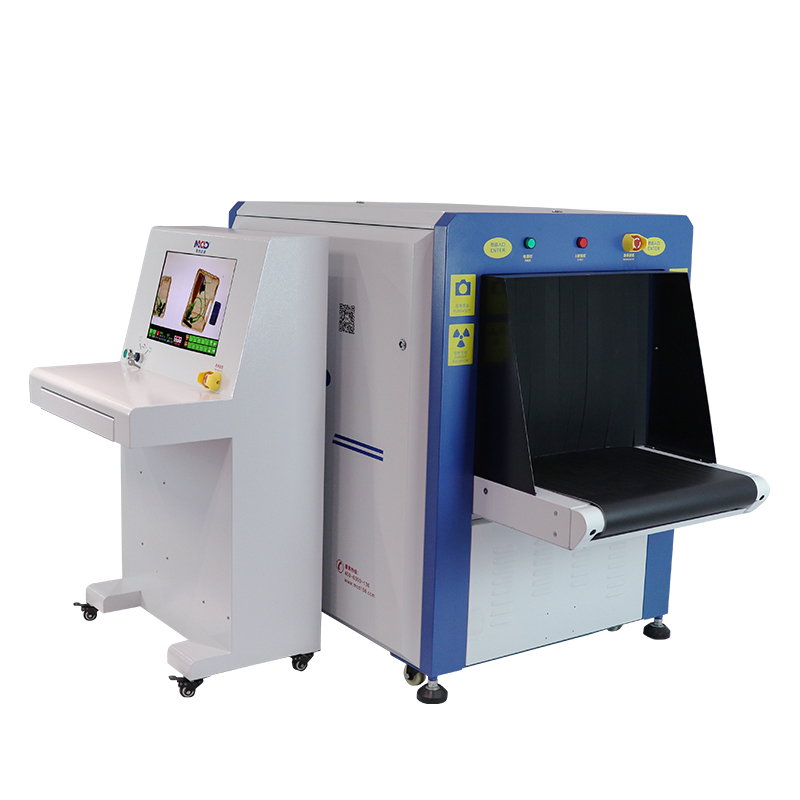

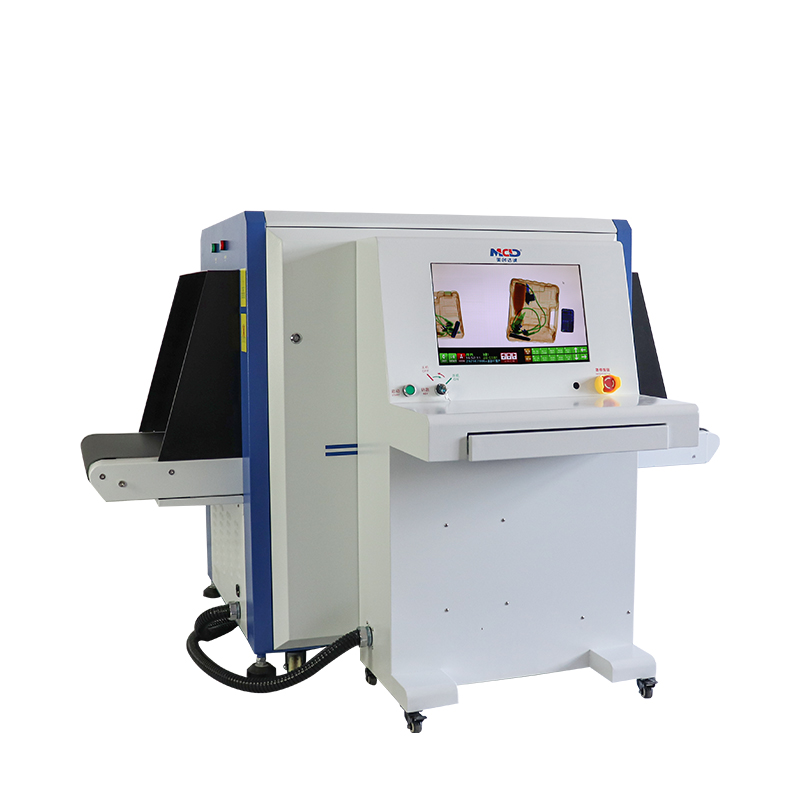

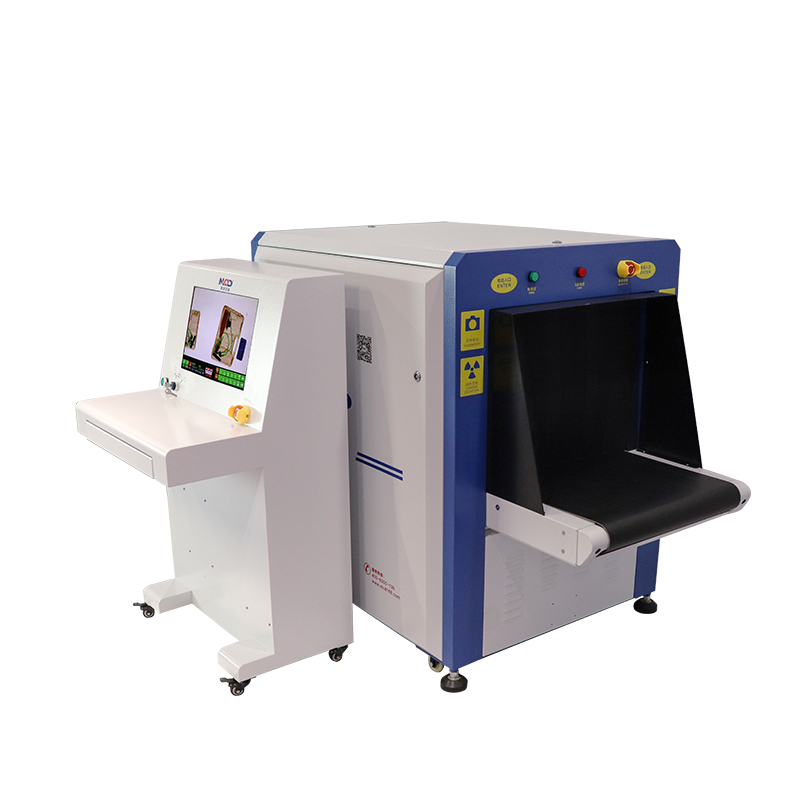

MCD-6550C X-Ray Baggage Scanner for Checkpoint_X Ray Baggage Scanner

Product Detaills

Standard Features

Twin-channel Detection System

Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.

High Definition Image

Adopt new generation of HD schema design, providing clear images and stable performance.

Dynamic Processing

Real-time display, optimization functions like edge enhancement, amplification and so on.

Image Management

Built-in image management system, which enables users to browse saved images quickly.

Intelligent Alarm

User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.

Green Lead Curtain

Wear-resistant, pollution-free, long service life.

Self-Diagnose

Automatically prompt when failure is detected, and be convenient to maintain.

Shutdown With One Key

When you try to turn off the equipment, just rotate the key, which is convenient and simple.

Network Interface

Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.

Intelligent Roller

Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.

Threat Image Protection

TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.

Usage/Application	Hotel, bank, Mail rooms, entrance halls, prisons , schools and Government Office etc.	——	Image System
Certification	CE and ISO		X-ray Sensor	L-shaped photo diode array (multi-energetic), 16bit depth
General Parametersc			Monitor	High resolution color, LCD compatible, 19inch(can be customize)
Model Number	MCD-6550C		Image Processing	Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind.
Tunnel Size Conveyor	650 mm (Width) * 500 mm (Height))		Image Grayness Level	4096
Conveyor Speed	0.22/ sec		Image Maximum Resolution	1440*900 pixels (can be customize)
Conveyor Max Load	170 kg (Evenly distributed)		Image Processing	24bit real time processing in real time
Conveyor height	350 mm or 630 mm		Image Storage	500,000 images in real time
Wire Resolution	Typical 40 AWG		Zone & Zoom	1-9 image zones, enlargement of 2, 4, 8, 16 times, fully screen continuous observation.

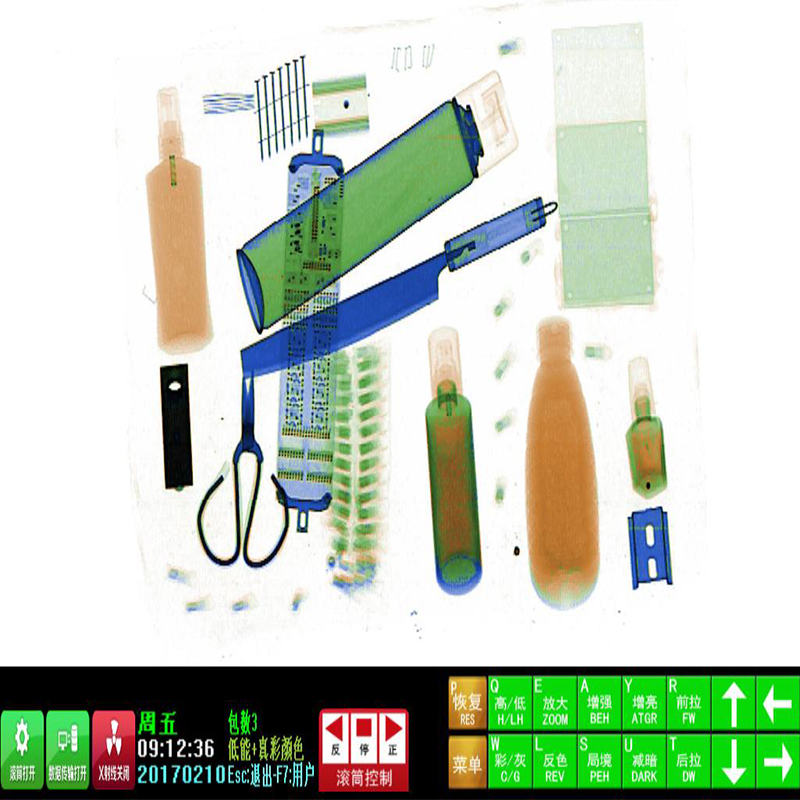

Pass resolution	Typical AWG34		Objects distinguish	Organic in orange Inornanic in blue Mixture in green
Spatial Resolution	Level: dia 1.0 mm Vertical: dia 1.0 mm		Other Functions	Fault diagnosis, system time setting, detection blind dots delete, X-ray source setting (analoge or digital ), alarm setting, image setting, software register, user management, date setting (machine working time , X-ray source working time, baggage counter etc.)
Penetration Through Steel Plate	34 mm		Network interface	YES
Dose per Inspection	Less than 1.5 uGy/h		Energy saving function	YES
Film Safety	Guaranteed ISO 1600 Film		Installation Data
X-ray Leakage	Less than 1 uGy/h at 5cm from frame house
*With continued R&D, MCD reservers the right to amend specifications without notice.			Operating Environment / Humidity	0 to 45 Degree C / 20 - 95% (non-condensing)
X-ray Generator			Storage Temperature / Humidity	-20 to 60 Degree C / 20 ~ 95% (non-condensing)
Generator Direction	From top to bottom		Operating Power	220VAC (± 10%) 50 ± 3Hz
Generator Angle	80 degrees downward		Power Consumption	1.0 KW (max), 0.3KW (working)
Anode Voltage	140 KV		System Noise	＜55 dB
Anode Power	0.3 mA
Sensor quantity	Multi-energy		Package Size
Cooling	Oil cooling 100%		Unit Net Weight	400 Kgs
			Unit Gross Weight	455 KG
			Wooden size	215108150 cm (X-ray baggage scanner machine body) 1308075 cm (operation desk)
			Total CBM	4.28 CBM
