Product Highlight:
Intelligent Alarm
Single-energy penetration system
High Definition Image
Shutdown With One Key
Multi-functions image processing system

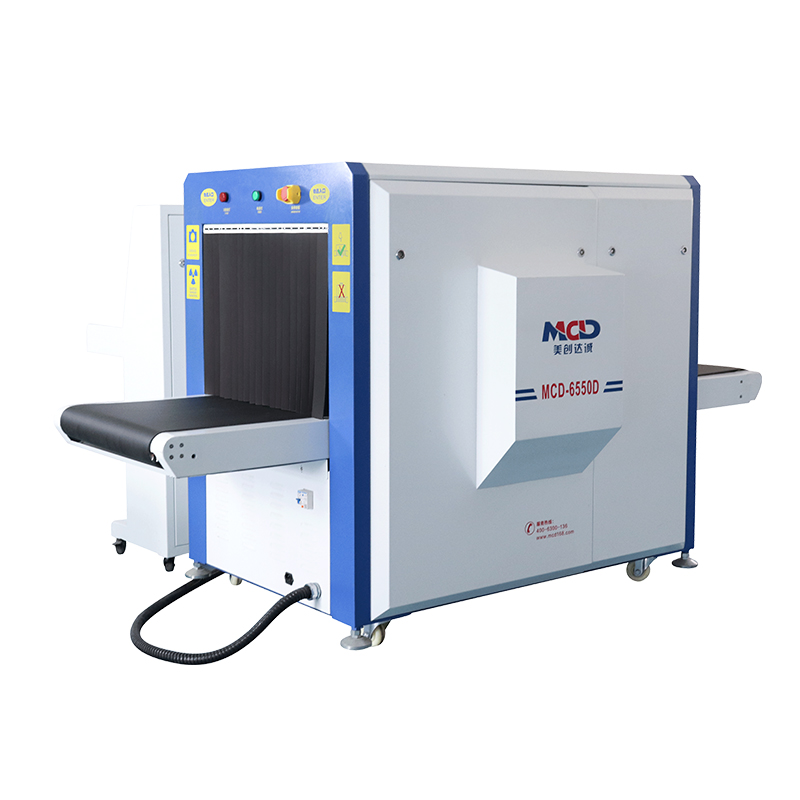

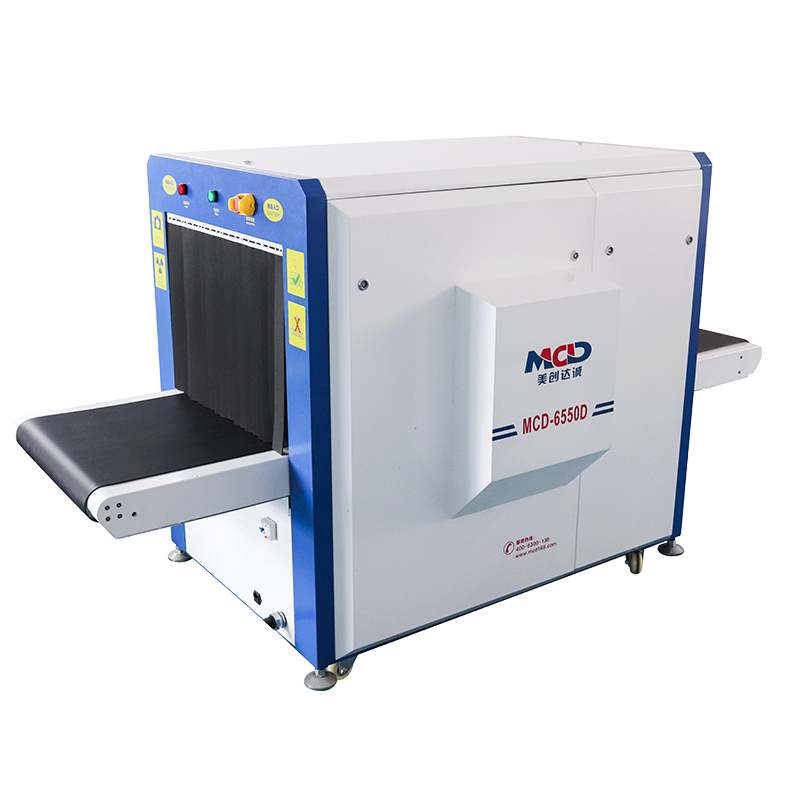

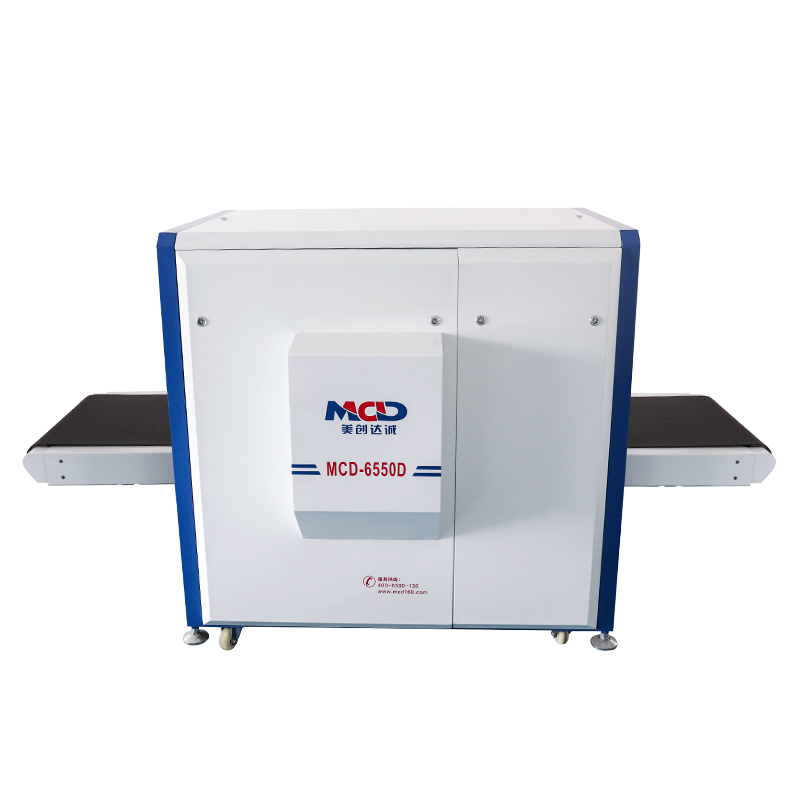

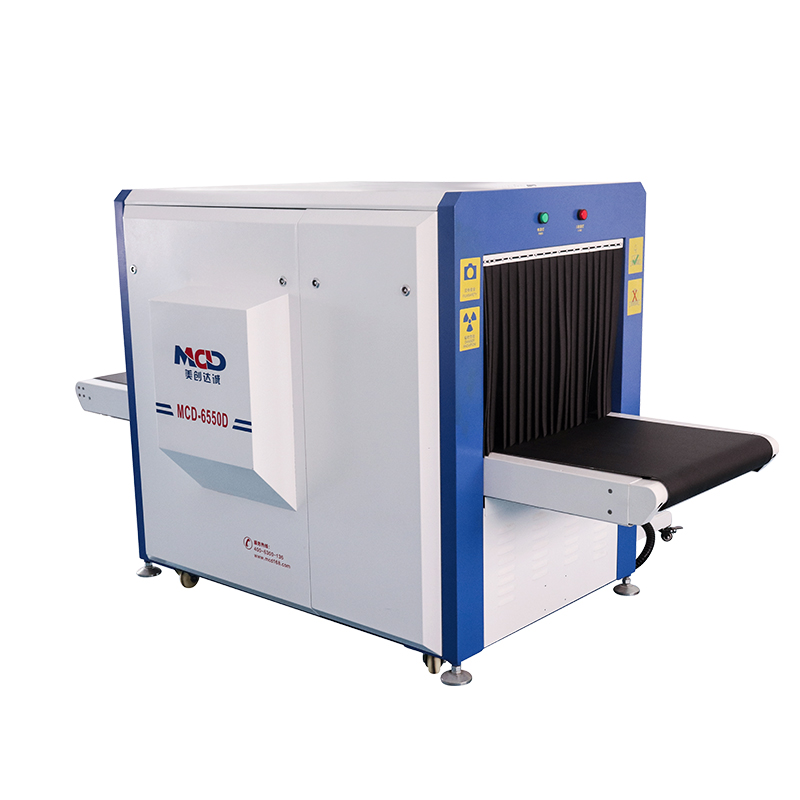

Type: X-ray Baggage Scanner
Brand: MCD
SKU: MCD-6550D
Quantity:
Standard Features

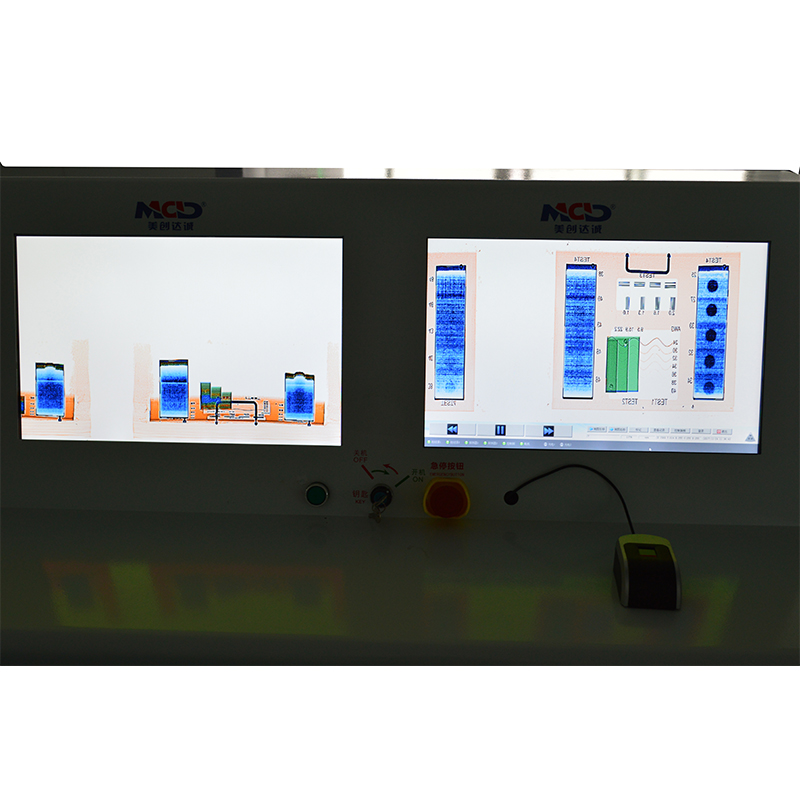

Twin-channel Detection System
Twin-channel data acquisition and transmission technology to process and display the images from different angle scanning synchronically.

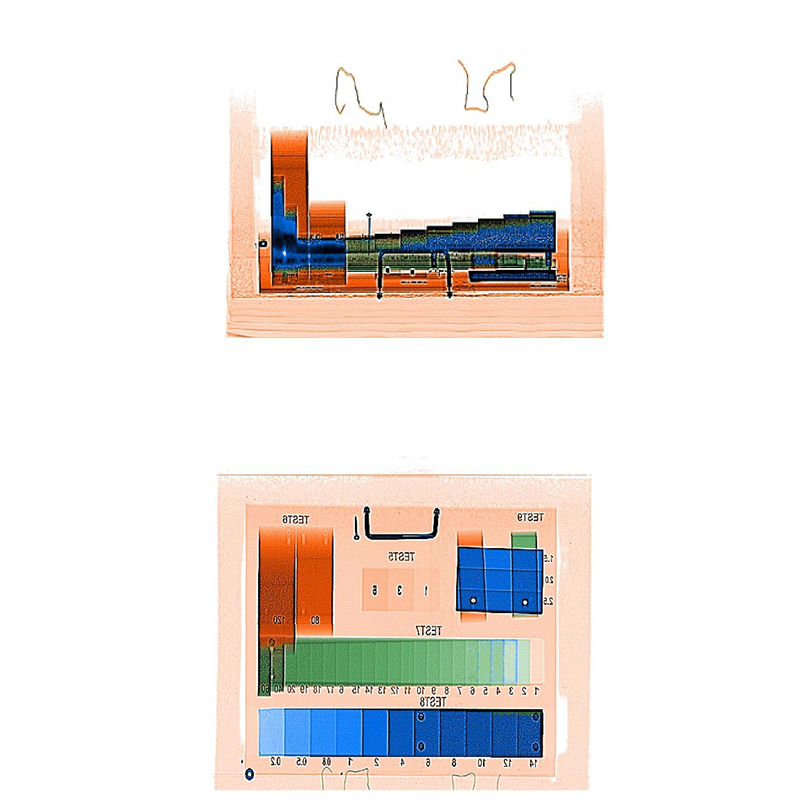

High Definition Image
Adopt new generation of HD schema design, providing clear images and stable performance.
Dynamic Processing
Real-time display, optimization functions like edge enhancement, amplification and so on.
Image Management
Built-in image management system, which enables users to browse saved images quickly.
Intelligent Alarm
User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.
Green Lead Curtain
Wear-resistant, pollution-free, long service life.
Self-Diagnose
Automatically prompt when failure is detected, and be convenient to maintain.
Shutdown With One Key
When you try to turn off the equipment, just rotate the key, which is convenient and simple.
Network Interface
Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.
Intelligent Roller
Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.
Threat Image Protection
TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.
Usage/Application | airport, railway systems, military base, government facilities, commercial facilities etc. | ______ | Image System | |
Technology Features | Dual view design | X-ray Sensor | L-shaped photo diode array (mono energetic), 16bit depth | |
General Parametersc | Monitor | High resolution color, LCD compatible, 19inch(can be customize) | ||
Model Number | MCD-6550D | Image Processing | Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind. | |
Tunnel Size Conveyor | 650 mm (Width) * 500 mm (Height)) | Image Grayness Level | 4096 | |
Conveyor Speed | 0.22/ sec | Objects distinguish | Organic in orange Inornanic in blue Mixture in green | |
Conveyor Max Load | 200 kg (Evenly distributed) | High-energy/low energy | Switch from high energy to low energy | |
Conveyor height | 350 mm or 630 mm | Image Maximum Resolution | 1440*900 pixels (can be customize) | |
Wire Resolution | 32AWGΦ0.202mm solid copper wire | Image Processing | 24bit real time processing in real time | |
Pass resolution | Typical AWG43 | Image Storage | 500,000 images in real time | |
Spatial Resolution | Level: dia 1.0 mm Vertical: dia 1.0 mm | Other Functions | Fault diagnosis, system time setting, detection blind dots delete, X-ray source setting (analoge or digital ), alarm setting, image setting, software register, user management, date setting (machine working time , X-ray source working time, baggage counter etc.) | |
Penetration Through Steel Plate | 43mm | Network interface | YES | |
Dose per Inspection | Less than 2.0 uGy/h | Energy saving function | YES | |
Film Safety | Guaranteed ISO 1600 Film | |||
X-ray Leakage | Less than 1 uGy/h at 5cm from frame house | Installation Data | ||
*With continued R&D, MCD reservers the right to amend specifications without notice. | Operating Environment / Humidity | 0 to 45 Degree C / 20 - 95% (non-condensing) | ||
X-ray Generator | Storage Temperature / Humidity | -20 to 60 Degree C / 20 ~ 95% (non-condensing) | ||
Generator Direction | Upward and sideward | Operating Power | 220VAC (± 10%) 50 ± 3Hz | |
Generator Angle | 80 degrees downward | Power Consumption | 1.0 KW (max), 0.3KW (working) | |
Anode Voltage | 140 KV | System Noise | ＜55 dB | |
Anode Power | 0.3 mA | |||
Sensor quantity | 2 Generator | Optional Features | ||
Cooling | Oil cooling 100% | camera video system,TIP Threat Image Projection,X-Auto sight(Threat self identification assistant function) etc.
| ||
Package Size | ||||
Unit Net Weight | 500 Kgs | |||
Unit Gross Weight | 650 Kgs | |||
Wooden size | 250 (L) x 125 (W) x 142 (H) (X-ray baggage scanner machine body) 133 (L) x 120 (W) x 75 (H) (dual screen operation desk) | |||
Total CBM | 5.7 CBM | |||
